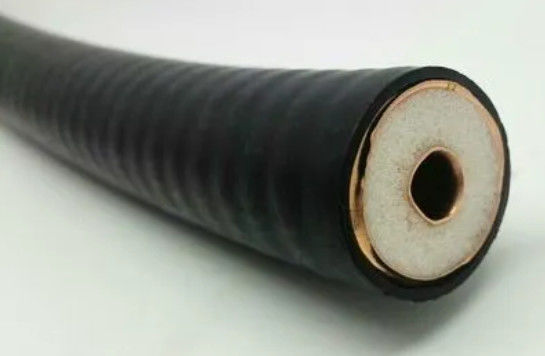

50 Ohm Low Loss Fire retardant Jacket coaxial cable (Low Loss 7/8'' retardant)HCTAYZ-50-23 for Wireless Communication
Quick Detail:
Description:
A feeder is a transmission channel for electromagnetic waves, whose function is to transmit high-frequency energy. The feeder cable can effectively transmit the signal received by the antenna, with small distortion, low loss, strong anti-interference capability, and a good impedance match between the feed line and the antenna, and between the signal input of the receiver. In large projects, Coaxial cable is an essential cable, simple connection, and low failure rate after installation. Accept customization of OEM or ODM.
Specifications:
| Inner conductor | |
| Smooth Copper-tube | |
| Diameter(mm) | 9.45±0.15 |
| Insulation | |
| 3 layers of Insulation | |
| Diameter(mm) | 22.40±0.50 |
| Outer conductor | |
| Corrugated Copper-tube | |
| Diameter over copper | |
| Outer conductor (mm) | 25.40±0.30 |
| Jacket | |
| Jacket Color | Black |
| Thickness(mm) | 1.20±0.20 |
| Diameter(mm) | 27.80±0.30 |
| Minimum Bending Radius (mm) | |
| Single Bending | 150 |
| Multiple Bending | 275 |
| Temperature range(℃) | |
| Standard jacket | -40～+70 |
| Fire Retardant Jacket | -25～+70 |
| Impedance (Ω) | 50±2 | ||
| Capacitance (pF/m) | 75±2 | ||
| Velocity (%) | 88 | ||
| Dc Breakdown, volts(V) | ≥6000 | ||
| Shielding Effectiveness(dB) | >>120 | ||
| Cut-off Frequenc(GHz) | 5.0 | ||
| Attenuation(dB/100m)and average power(kW) | |||
| Frequency | Attenuation | Average | |
| Power | |||
| 150 MHz | 1.43 | 6.05 | |
| 450 MHz | 2.56 | 3.39 | |
| 800 MHz | 3.51 | 2.48 | |
| 900 MHz | 3.75 | 2.32 | |
| 1800 MHz | 5.54 | 1.53 | |
| 2000 MHz | 5.89 | 1.48 | |
| 2400 MHz | 6.59 | 1.31 | |
| 3000 MHz | 7.45 | 1.22 | |
| 3500 MHz | 8.24 | 1.17 | |
| 4000 MHz | 8.98 | 1.02 | |
| 5000 MHz | 10.31 | 0.87 | |
| VSWR | |||
| 820MHz～960MHz | 1.10 | ||
| 1700MHz～2200MHz | 1.13 | ||
| 2200MHz～2700MHz | 1.15 | ||
| 3300MHz～3600MHz | 1.20 | ||
| 4400MHz～5000MHz | 1.20 | ||
Standard Conditions:
For attenuation: VSWR 1.0, cable temperature 20℃
For average power: VSWR 1.0, ambient temperature 40℃
Inner conductor temperature 100℃.No solar loading.
Maximum VSWR and attenuation value shall be 105% off the nominal value.
Applications:
It is usually used in wireless communication base stations.
|
|
