PE LSZH Jacket 1/2" Flexible Coaxial Cable 50 Ohm Low VSWR

Basic Information
Place of Origin: China, Chengdu
Brand Name: FHDT
Certification: ISO,RoHs, ETL, UL, CPR
Model Number: 1/2'' Feeder cable HCAAY-50-12
Minimum Order Quantity: 10 KM
Price: Negotiable
Packaging Details: Neutral drum or Carton, 500m/drum or 200m/carton. Customizable
Delivery Time: 3-4 weeks for mass production
Payment Terms: Usually T/T, other terms negotiable
Detail Information
Application: Telecommunication / Cabling System, Base Station Inner Conductor: Copper Clad Aluminum
Outer Conductor: Annular Corrugated Copper Tube Insulation: 3 Layers Of Insulation
Color: Customized Jacket Material: PE&LSZH
Packing: Neutral Drum/Neutral Carton Quantity: 500m/Drum Or 200m/Carton
High Light:

flexible coaxial cable 50 ohm Low VSWR

,

PE LSZH flexible coaxial cable 50 ohm

,

PE LSZH half inch coaxial cable


Product Description



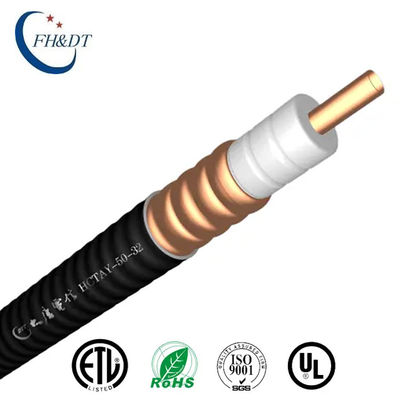

Radio Frequency 50Ohm Copper Feeder cable 1/2 Inch(1/2’’ coaxial cable) HCAAY-50-12

Quick Detail:

  • Low Attenuation
  • Low VSWR,
  • High expansion
  • High power rating
  • Excellent environmental performance
  • Excellent Mechanical Performance
  • Customized Cable



Description:

Flexible radio frequency coaxial cable is also called Flexible RF Feeder cable or Feeder cable. 1/2 "feeders are typically carrier-specific cables with very low losses and support long-distance connections. In large projects, a 1/2" Coaxial cable is an essential cable, simple connection, and low failure rate after installation. Accept customization of OEM or ODM

Specifications:

Construction

Inner conductor
Smooth Copper-tube
Diameter(mm) 4.80±0.10
Insulation
3 layers of Insulation
Diameter(mm) 12.0±0.2
Outer conductor
Corrugated Copper-tube
Diameter over copper
Outer conductor (mm) 13.80±0.25
Jacket
Thickness(mm) 1.0±0.2
Diameter(mm) 15.8±0.2

Engineering Data

Minimum Bending Radius (mm)
Single Bending 70
Multiple Bending 125
Minimum Number of Bends 15
Temperature range(℃)
Standard jacket -40~+70
Fire Retardant Jacket -25~+70

Electrical Performance

Impedance (Ω) 50±1
Capacitance (pF/m) 75.8±2
Velocity (%) 88
Dc Breakdown, volts(V) ≥4000
Shielding Effectiveness(dB) >>120
Cut-off Frequenc(GHz) 8.8
Attenuation(dB/100m)and average power(kW)
Frequency Attenuation Average
Power
150 MHz 2.67 3.17
450 MHz 4.74 1.80
800 MHz 6.45 1.33
900 MHz 6.87 1.25
1800 MHz 10.08 0.86
2000 MHz 10.70 0.81
2500 MHz 12.10 0.72
3000 MHz 13.39 0.65
3500 MHz 14.66 0.59
4000 MHz 15.83 0.55
5000 MHz 18.04 0.48
VSWR
820MHz~960MHz 1.10
1700MHz~2200MHz 1.10
2200MHz~2700MHz 1.15
3300MHz~3600MHz 1.20
4400MHz~5000MHz 1.20


Standard Conditions:

For attenuation: VSWR 1.0, cable temperature 20℃

For average power:VSWR 1.0,ambient temperature 40℃

Inner conductor temperature 100℃.No solar loading.

Maximum VSWR and attenuation value shall be 105% off the nominal value.





Standard Conditions:

For attenuation: VSWR 1.0, cable temperature 20℃

For average power: VSWR 1.0, ambient temperature 40℃

Inner conductor temperature 100℃.No solar loading.

Maximum VSWR and attenuation value shall be 105% off the nominal value.







Applications:

It is usually used for mobile, telecommunication, contact cell phone signal coverage, and intercom signal coverage.
