| Place of Origin: | Chengdu, China |
|---|---|
| Brand Name: | FHDT |
| Certification: | ISO/IEC 11801-2008, TIA/EIA-568B.2-2001 |
| Model Number: | Cat.5E F-UTP |
| Minimum Order Quantity: | 500 Drums |
| Price: | Negotiable |
| Packaging Details: | Drums |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | Usually T/T, other terms negotiable |
| Supply Ability: | 3-4 weeks for mass production |
| Number Of Conductors: | 8 | Type: | Cat.5E F-UTP |
|---|---|---|---|
| Application: | Telecommunication / Cabling System | Color: | Customized |
| Jacket Material: | LLDPE | Conductor Material: | Oxygen-free Copper Wire |
| Structure: | 4P Twisted Pair | Conductor: | 24 AWG |
| Packing: | Drum | ||
| High Light: | Cat5E F UTP VDE 0295,Cat5E F UTP PE Shielded Lan Cable,LLDPE Jacket PE Shielded Lan Cable |
||

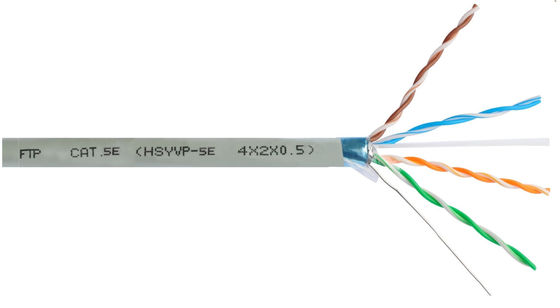

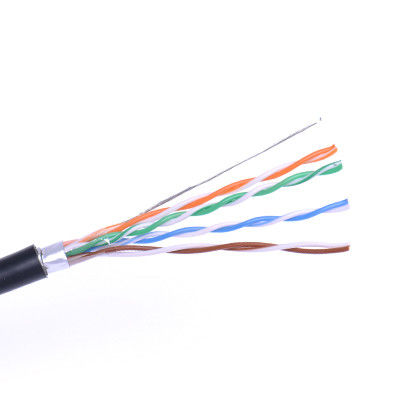

High-Speed Cat.5E F-UTP 4 Pairs PE Shielded Lan Cable
Specifications:
| Test Standard | TIA/EIA-568C.2,ISO_IEC 11801 | ||||||||||||||||||||
| Construction | |||||||||||||||||||||
| Conductor | Material | Solid Bare Copper | | ||||||||||||||||||
| Diameter(mm) | 24AWG | ||||||||||||||||||||
| Insulation | Material | HDPE | |||||||||||||||||||
| Diameter(mm) | 0.97±0.03 | ||||||||||||||||||||
| Core color | 1 white-blue/blue | 2 white-orange/orange | |||||||||||||||||||
| 3 white-green/green | 4 white-brown/brown | ||||||||||||||||||||
| Polyester tap | Yes | Aluminum foil | YES | ||||||||||||||||||
| Rip cord | 210D | Drain wire | Yes,TC | ||||||||||||||||||
| Jacket | Material | LLDPE | |||||||||||||||||||
| Thickness | 0.75±0.1mm | ||||||||||||||||||||
| Diameter | 6.7±0.5mm | Package | Drum in box | ||||||||||||||||||
| Color | Black | ||||||||||||||||||||
Surface printing | Letter high | 3.0 ± 0.5mm | |||||||||||||||||||
| Color | White | ||||||||||||||||||||
| Box Dimensions(mm) | 405*405*330(Internal dimensions) | ||||||||||||||||||||
| Print error & Space | ≤± 0.5% , 1m | Package Length | 305m | ||||||||||||||||||
| Electrical Properties | |||||||||||||||||||||
| Conductor Resistance (20℃) | ≤9.38 Ω/ 100m | ||||||||||||||||||||
| Electrical Resistance Unbalance ( 20℃) | ≤2.0% | ||||||||||||||||||||
| Insulation Resistance | >5000 MΩ·km | ||||||||||||||||||||
| Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) | ≤160pF/100m | ||||||||||||||||||||
| Mutual capacitance of a pair | ≤5.6nF/100m | ||||||||||||||||||||
| Transmission Properties | |||||||||||||||||||||
Feq | Zin | IL | RL | NEXT | PS NEXT | ELFEXT | PS ELFEXT | ||||||||||||||
| Ω | dB/100m | dB | dB/100m | dB/100m | dB/100m | dB/100m | |||||||||||||||
| 1.0 | 100±15 | ≤2.04 | ≥20.00 | ≥65.30 | ≥62.30 | ≥64.00 | ≥61.00 | ||||||||||||||
| 4.0 | ≤4.05 | ≥23.01 | ≥56.27 | ≥53.27 | ≥51.96 | ≥48.96 | |||||||||||||||
| 8.0 | ≤5.77 | ≥24.52 | ≥51.75 | ≥48.75 | ≥45.94 | ≥42.94 | |||||||||||||||
| 10.0 | ≤6.47 | ≥25.00 | ≥50.30 | ≥47.30 | ≥44.00 | ≥41.00 | |||||||||||||||
| 16.0 | ≤8.25 | ≥25.00 | ≥47.24 | ≥44.24 | ≥39.92 | ≥36.92 | |||||||||||||||
| 25.0 | ≤10.42 | ≥24.32 | ≥44.33 | ≥41.33 | ≥36.04 | ≥33.04 | |||||||||||||||
| 31.2 | ≤11.71 | ≥23.65 | ≥42.89 | ≥39.89 | ≥34.12 | ≥31.12 | |||||||||||||||
| 62.5 | ≤16.99 | ≥21.54 | ≥38.36 | ≥35.36 | ≥28.08 | ≥25.08 | |||||||||||||||
| 100 | ≤21.98 | ≥20.11 | ≥35.30 | ≥32.30 | ≥24.00 | ≥21.00 | |||||||||||||||
| Environment Temperature | |||||||||||||||||||||
| Store | -10～+50℃ | Installation | -5～+40 | Work | -20 ～ +75 | ||||||||||||||||
| Remark | |||||||||||||||||||||
| |||||||||||||||||||||
Applications:
Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.
FAQ
Cat.5E F-UTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.
Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production
Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.
Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
