100MHz Transmission Frequency PVC LLDPE Jacket Cat5e F UTP Cable

Basic Information
Place of Origin: Chengdu, China
Brand Name: FHDT
Certification: ISO/IEC 11801-2008, TIA/EIA-568B.2-2001
Model Number: Cat.5E F-UTP
Minimum Order Quantity: 500 Drums
Price: Negotiable
Packaging Details: Drums
Delivery Time: 3-4 weeks
Payment Terms: Usually T/T, other terms negotiable
Supply Ability: 3-4 weeks for mass production
Detail Information
Number Of Conductors: 8 Type: Cat.5E F-UTP
Application: Telecommunication / Cabling System Color: Customized
Jacket Material: PVC & LLDPE Conductor Material: Oxygen-free Copper Wire
Structure: 4P Twisted Pair Conductor: 24 AWG
Packing: Drum Test Standard: TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019
High Light:

100MHz cat5e f utp

,

PVC LLDPE cat5e f utp

,

100MHz f utp Cable


Product Description


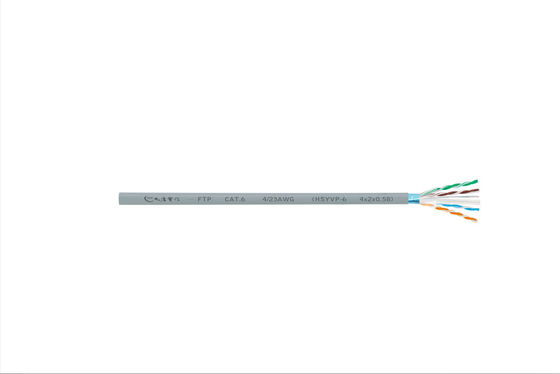

Cat.5E F-UTP Double Jacket Lan Cable


Quick Detail:

  • 100MHz transmission frequency
  • 24AWG high-quality conductor
  • Double jacket protection
  • 100m Channel test pass
  • 90m Permanent Link test pass
  • ISO/IEC 11801-2008 TIA/EIA-568B.2-2001
  • CE, RoHS, TUV, UL compliant
  • 25 Years Warranty
  • OEM or ODM available


Description:

The conductor adopts 24AWG high-quality oxygen-free copper wire (99.99%). Suitable for Fast Ethernet applications, the highest transmission frequency can reach 100MHz. Design of double jacket could provide better protection. The Cable can pass 100m Channel test or 90m Permanent Link test. Fully meet and superior to the standards of ISO/IEC 11801-2008 TIA/EIA-568B.2-2001, in line with CPR UL. Accept customization of OEM or ODM


Specifications:


Test Standard

TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019

Construction

Conductor

Material

Solid Bare Copper








100MHz Transmission Frequency PVC LLDPE Jacket Cat5e F UTP Cable 0




Diameter(mm)

0.51

Insulation

Material

HDPE

Diameter(mm)

0.99~1.00

Core color

1 white-blue/blue

2 white-orange/orange

3 white-green/green

4 white-brown/brown

Polyester tap

20×0.035mm

Aluminum foil

20×0.075mm

Rip cord

Tex111

Drain wire

0.5mmTC

Aluminum tape

32×0.25mm

Jacket

Inner jacket

Material

PVC

Thickness

0.6±0.1mm

Diameter

6.3±0.2mm

Color

According to the requires

Outer jacket

Material

LLDPE

Thickness

1.4±0.1mm

Diameter

11.1±0.2mm

Color

Black

Surface printing

Letter high

3.0 ± 0.5mm

Color

White

Print error & Space

≤± 0.5% , 1m

Package

Drum

Package Length

305m

Electrical Properties

Conductor Resistance (20℃)

≤9.5 Ω/ 100m

Electrical Resistance Unbalance ( 20℃)

≤2.5%

Insulation Resistance

>5000 MΩ·km

Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz)

≤330pF/100m

Mutual capacitance of a pair

≤5.6nF/100m

Transmission Properties(Fluke Testing)

Feq
MHZ

Zin

IL

RL

NEXT

PS NEXT

ELFEXT

PS ELFEXT

Ω

dB/100m

dB

dB/100m

dB/100m

dB/100m

dB/100m

1.0

100±15

≤2.04

≥20.00

≥65.30

≥62.30

≥64.00

≥61.00

4.0

≤4.05

≥23.01

≥56.27

≥53.27

≥51.96

≥48.96

8.0

≤5.77

≥24.52

≥51.75

≥48.75

≥45.94

≥42.94

10.0

≤6.47

≥25.00

≥50.30

≥47.30

≥44.00

≥41.00

16.0

≤8.25

≥25.00

≥47.24

≥44.24

≥39.92

≥36.92

25.0

≤10.42

≥24.32

≥44.33

≥41.33

≥36.04

≥33.04

31.2

≤11.71

≥23.65

≥42.89

≥39.89

≥34.12

≥31.12

62.5

≤16.99

≥21.54

≥38.36

≥35.36

≥28.08

≥25.08

100



≤21.98

≥20.11

≥35.30

≥32.30

≥24.00

≥21.00







Applications:

Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.
