| Place of Origin: | Chengdu, China |
|---|---|
| Brand Name: | FHDT |
| Certification: | ISO/IEC 11801-2008, TIA/EIA-568B.2-2001 |
| Model Number: | Cat.5E U-UTP |
| Minimum Order Quantity: | 500 boxes |
| Price: | Negotiable |
| Packaging Details: | boxes |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | Usually T/T, other terms negotiable |
| Supply Ability: | 3-4 weeks for mass production |
| Number Of Conductors: | 8 | Type: | Cat.5E U-UTP |
|---|---|---|---|
| Application: | Telecommunication / Cabling System | Color: | Customized |
| Jacket Material: | LLDPE | Conductor Material: | Oxygen-free Copper Wire |
| Structure: | 4P Twisted Pair | Conductor: | 24 AWG |
| Packing: | Boxes | ||
| High Light: | 4P Twisted Pair Cat5e Ethernet Cable,Telecommunication Cat5E U UTP 24AWG,4P Twisted Pair Cat5E U UTP |
||

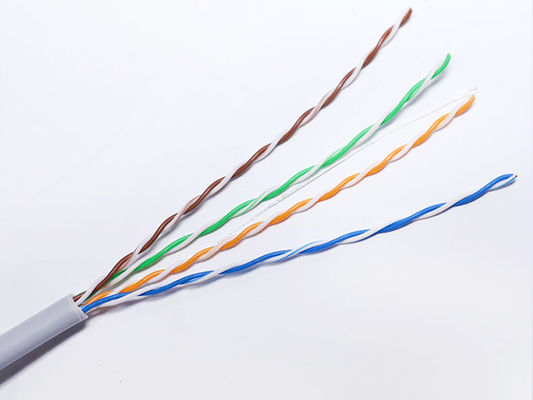

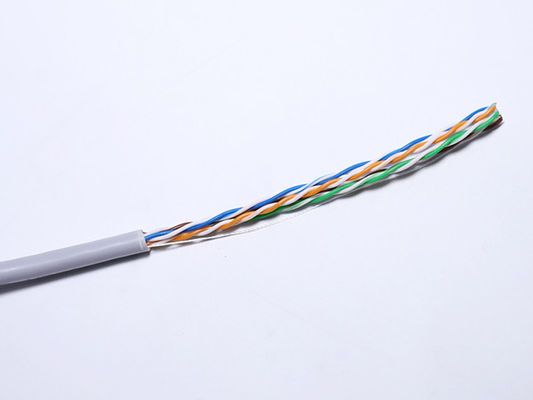

Cat.5E U-UTP High compatibility Cable
Description:
Our Copper wire purity is 99.97% oxygen-free copper, meets the requirements of the international standard, with good softness, low resistance, and better signal transmission performance. FLUKE testing reports are available for all products. The cable sheath is selected in new environmental protection PVC/PE material, refuse to recycle material, safe flame retardant, flexible bending resistance, and not easy to break in the construction process of integrated wiring. Anti-aging, long cable life.
Specifications:
| Test Standard | TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019 | |||||||||
| Construction | ||||||||||
| Conductor | Material | Solid Bare Copper |
|
|||||||
| Diameter(mm) | 0.50 | |||||||||
| Insulation | Material | HDPE | ||||||||
| Diameter(mm) | 0.89~0.90 | |||||||||
| Core color | 1 white-blue/blue | 2 white-orange/orange | ||||||||
| 3 white-green/green | 4 white-brown/brown | |||||||||
| Polyester tap | 20×0.035mm | |||||||||
| Aluminum tape | 22×0.25mm | |||||||||
| Sheath | Material | LLDPE | ||||||||
| Thickness | 1.3±0.1mm | |||||||||
| Diameter | 8.6±0.2mm | |||||||||
| Color | Black | |||||||||
| Surface printing | Letter high | 3.0 ± 0.5mm | ||||||||
| Color | White | |||||||||
| Print error & Space | ≤± 0.5% , 1m | |||||||||
| Package | Reel in box | |||||||||
| Box Dimensions(mm) | 510*510*240 | |||||||||
| Package Length | 305m | |||||||||
| Electrical Properties | ||||||||||
| Conductor Resistance (20℃) | ≤9.5 Ω/ 100m | |||||||||
| Electrical Resistance Unbalance ( 20℃) | ≤2.5% | |||||||||
| Insulation Resistance | >5000 MΩ·km | |||||||||
| Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) | ≤330pF/100m | |||||||||
| Mutual capacitance of a pair | ≤5.6nF/100m | |||||||||
| Transmission Properties(Fluke Testing) | ||||||||||
|
Feq MHZ |
Zin | IL | RL | NEXT | PS NEXT | ELFEXT | PS ELFEXT | |||
| Ω | dB/100m | dB | dB/100m | dB/100m | dB/100m | dB/100m | ||||
| 1.0 | 100±15 | ≤2.04 | ≥20.00 | ≥65.30 | ≥62.30 | ≥64.00 | ≥61.00 | |||
| 4.0 | ≤4.05 | ≥23.01 | ≥56.27 | ≥53.27 | ≥51.96 | ≥48.96 | ||||
| 8.0 | ≤5.77 | ≥24.52 | ≥51.75 | ≥48.75 | ≥45.94 | ≥42.94 | ||||
| 10.0 | ≤6.47 | ≥25.00 | ≥50.30 | ≥47.30 | ≥44.00 | ≥41.00 | ||||
| 16.0 | ≤8.25 | ≥25.00 | ≥47.24 | ≥44.24 | ≥39.92 | ≥36.92 | ||||
| 25.0 | ≤10.42 | ≥24.32 | ≥44.33 | ≥41.33 | ≥36.04 | ≥33.04 | ||||
| 31.2 | ≤11.71 | ≥23.65 | ≥42.89 | ≥39.89 | ≥34.12 | ≥31.12 | ||||
| 62.5 | ≤16.99 | ≥21.54 | ≥38.36 | ≥35.36 | ≥28.08 | ≥25.08 | ||||
| 100 | ≤21.98 | ≥20.11 | ≥35.30 | ≥32.30 | ≥24.00 | ≥21.00 | ||||
| Test Standard | TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019 | |||||||||
| Construction | ||||||||||
| Conductor | Material | Solid Bare Copper |
|
|||||||
| Diameter(mm) | 0.50 | |||||||||
| Insulation | Material | HDPE | ||||||||
| Diameter(mm) | 0.89~0.90 | |||||||||
| Core color | 1 white-blue/blue | 2 white-orange/orange | ||||||||
| 3 white-green/green | 4 white-brown/brown | |||||||||
| Rip cord | Tex111 | |||||||||
| Sheath | Material | PVC/LSZH | ||||||||
| Thickness | 0.6±0.1mm | |||||||||
| Diameter | 5.2±0.2mm | |||||||||
| Color | According to the requires | |||||||||
| Surface printing | Letter high | 3.0 ± 0.5mm | ||||||||
| Color | Black&White | |||||||||
| Print error & Space | ≤± 0.5% , 1m | |||||||||
| Package | Paper box | |||||||||
| Box Dimensions(mm) | 360*360*230 | |||||||||
| Package Length | 305m | |||||||||
| Electrical Properties | ||||||||||
| Conductor Resistance (20℃) | ≤9.5 Ω/ 100m | |||||||||
| Electrical Resistance Unbalance ( 20℃) | ≤2.5% | |||||||||
| Insulation Resistance | >5000 MΩ·km | |||||||||
| Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) | ≤330pF/100m | |||||||||
| Mutual capacitance of a pair | ≤5.6nF/100m | |||||||||
| Transmission Properties(Fluke Testing) | ||||||||||
|
Feq MHZ |
Zin | IL | RL | NEXT | PS NEXT | ELFEXT | PS ELFEXT | |||
| Ω | dB/100m | dB | dB/100m | dB/100m | dB/100m | dB/100m | ||||
| 1.0 | 100±15 | ≤2.04 | ≥20.00 | ≥65.30 | ≥62.30 | ≥64.00 | ≥61.00 | |||
| 4.0 | ≤4.05 | ≥23.01 | ≥56.27 | ≥53.27 | ≥51.96 | ≥48.96 | ||||
| 8.0 | ≤5.77 | ≥24.52 | ≥51.75 | ≥48.75 | ≥45.94 | ≥42.94 | ||||
| 10.0 | ≤6.47 | ≥25.00 | ≥50.30 | ≥47.30 | ≥44.00 | ≥41.00 | ||||
| 16.0 | ≤8.25 | ≥25.00 | ≥47.24 | ≥44.24 | ≥39.92 | ≥36.92 | ||||
| 25.0 | ≤10.42 | ≥24.32 | ≥44.33 | ≥41.33 | ≥36.04 | ≥33.04 | ||||
| 31.2 | ≤11.71 | ≥23.65 | ≥42.89 | ≥39.89 | ≥34.12 | ≥31.12 | ||||
| 62.5 | ≤16.99 | ≥21.54 | ≥38.36 | ≥35.36 | ≥28.08 | ≥25.08 | ||||
| 100 | ≤21.98 | ≥20.11 | ≥35.30 | ≥32.30 | ≥24.00 | ≥21.00 | ||||
Quick Detail:
Applications:
Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.
FAQ
Cat.5E U-UTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.
Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production
Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.
Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
