8P8C Ethernet Cable Accessories Cat5e UTP Patch Cable 26awg X4p EN 50173

Basic Information
Place of Origin: Chengdu, China
Brand Name: FHDT
Certification: ANSI/TIA 568-C.2, EN 50173, ISO/IEC 11801
Model Number: Cat.5e 4 Pairs Patch Cord
Minimum Order Quantity: 1000 pcs
Price: Negotiable
Packaging Details: Neutral box
Delivery Time: 3-4 weeks
Payment Terms: Usually T/T, other terms negotiable
Supply Ability: 3-4 weeks for mass production
Detail Information
Number Of Conductors: 8 Type: Cat.5E
Application: Telecommunication / Cabling System Color: Customized
Jacket Material: PVC&LSZH Conductor Material: Oxygen-free Copper Wire
Structure: 4P Twisted Pair Conductor: 26 AWG
Packing: Neutral Box Quantity: 305m/box
High Light:

8P8C Ethernet Cable Accessories

,

cat5e utp patch cable 26awg x4p

,

cat5e utp 26awg EN 50173


Product Description

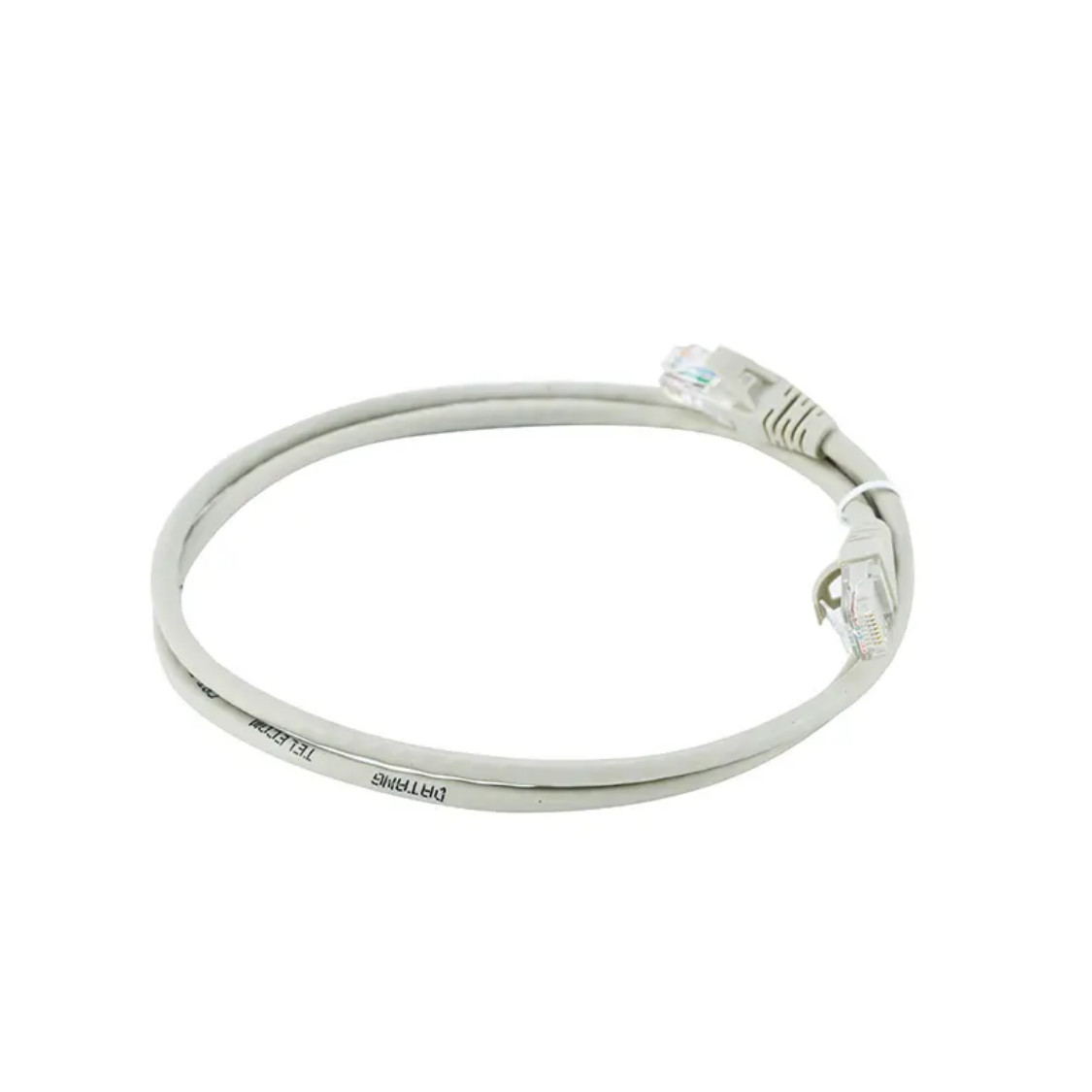

Cat.5e 4 Pairs 26AWG High Performance Patch Cord











Quick Detail:

  • Standards: ANSI/TIA 568-C.2, EN 50173, ISO/IEC 11801
  • Standard Color: Gray, Blue, Red, Green, Yellow,Black
  • Connector: 8P8C RJ45, 50μ inch gold plating
  • Meets or exceeds Category 5e performance standards
  • Unshielded cable assemblies contain 4-Pair stranded 26 AWG conductors
  • Shielded cable assembly contains 4-Pair stranded 26 AWG conductors
  • Universal wiring (T568A/T568B)
  • Lead-Free (no heavy metals)
Number Of Conductors: 8 Type: Cat.5E
Application: Telecommunication / Cabling System Color: Customized
Jacket Material: PVC&LSZH Conductor Material: Oxygen-free Copper Wire
Structure: 4P Twisted Pair Conductor: 26 AWG
Packing: Neutral Box Quantity: 305m/box


Description:



Category 5e patch cords are assembly of 4-pair stranded wire with modular plugs crimped at both ends.They offer a high performance alternative to satin modular line cords where crosstalk, EMI or distance may be considerations.



Specifications:

Conductor Material 7*0.16mm
Diameter(mm) 0.48±0.03
Insulation Material HDPE
Diameter(mm) 0.94±0.05
Core color 1 white-blue/blue 2 white-orange/orange
3 white-green/green 4 white-brown/brown
Sheath Material PVC/LSZH
Thickness(mm) 0.58±0.15
Diameter(mm) 5.2±0.25
Color Non-Brightness Gray
Surface printing Letter high 2.0± 0.5mm
Color Black or White
Print error & Space ≤± 0.5% , 1m





Rated Temperature (℃) 75
Flame test CM
Application Telephone and other communication circuits such as voice, data,



and audio for on-premise customer system





DC Resistance (@20℃),Ω/100m ≤13.5
Min. Insulation Resistance(MΩ·km) ≥ 100
Dielectric Strength AC-500V/1 Min



DATANG CABLE is specialized in R&D, manufacturing, Sales, Distribution of telecommunication cable and accessories in China and worldwide markets. With constant efforts, DATANG CABLE has been a Top10 Cabling System Brand in China since 2009.



DATANG CABLE focuses on cable research and innovation in China since 1965.



With more than 50 years R&D experience, we have contributed in drafting many national standards and other industry standards. DATANG CABLE has a professional technical team and we can offer a strong technical support when necessary.



DATANG CABLE has 3 main workshops: lan cable & accessories, fiber cable & accessories and coaxial cable & accessories workshops. With imported production lines, and well designed modern workshop and experienced team, DATANG CABLE is equipped with big capacity to meet customers demand in home and abroad: Lan Cable: 1 million boxes/year; Coaxial Cable: 80000km/year; Optical Fiber Cable: 3.5 million core km/year.



QUALTIY is always first priority in DATANG CABLE. Company is ISO 9001,ISO 14000 certified, and products are manufactured and tested according to international standards. Products are RoHS, REACH, UL, ETL, CPR certified. OEM&ODM service is available.



Meeting CUSTOMERS demand is always the drive for DATANG CABLE. DATANG CABLE has gained great market share in both domestic and oversea markets because of customer satisfaction. More and more customers are choosing to partner with DATANG CABLE because its strong support and services and constant improvement to meet customers’ requirements. Together with customers, we have overcome many difficulties and improved our ability to serve customers better, and grow together. Annual sales revenue is over 90 million USD and growing each year.
