TIA 568-C.2 Ethernet Cable Accessories System Cable UTP Cat5e 4 Pairs 26awg

TIA 568-C.2 Ethernet Cable Accessories System Cable UTP Cat5e 4 Pairs 26awg

Brand Name: FHDT
Model Number: Cat.5e 4 Pairs Patch Cord
MOQ: 1000 pcs
Price: Negotiable
Packaging Details: Neutral box
Payment Terms: Usually T/T, other terms negotiable
Detail Information
Place of Origin:
Chengdu, China
Certification:
ANSI/TIA 568-C.2, EN 50173, ISO/IEC 11801
Number Of Conductors:
8
Type:
Cat.5E
Application:
Telecommunication / Cabling System
Color:
Customized
Jacket Material:
PVC&LSZH
Conductor Material:
Oxygen-free Copper Wire
Structure:
4P Twisted Pair
Conductor:
26 AWG
Packing:
Neutral Box
Quantity:
305m/box
Supply Ability:
3-4 weeks for mass production
Highlight:

TIA 568-C.2 Ethernet Cable Accessories

,

system cable utp cat5e 4 pairs 26awg

,

TIA 568-C.2 data cable cat 5e utp 26awg

Product Description

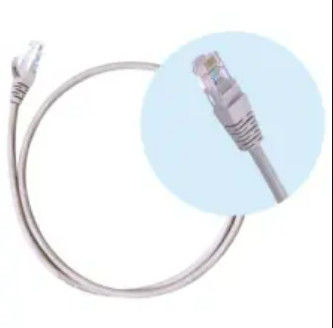

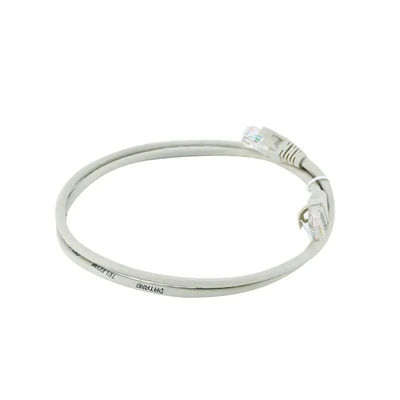

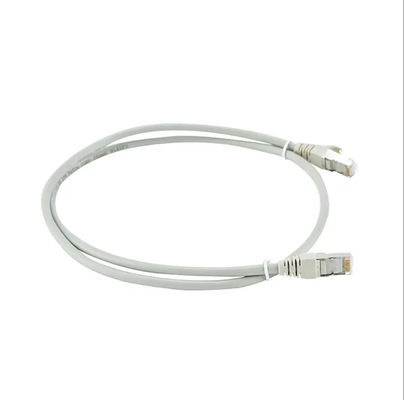

Cat.5e 4 Pairs 26AWG High Performance Patch Cord



Quick Detail:

  • Standards: ANSI/TIA 568-C.2, EN 50173, ISO/IEC 11801
  • Standard Color: Gray, Blue, Red, Green, Yellow,Black
  • Connector: 8P8C RJ45, 50μ inch gold plating
  • Meets or exceeds Category 5e performance standards
  • Unshielded cable assemblies contain 4-Pair stranded 26 AWG conductors
  • Shielded cable assembly contains 4-Pair stranded 26 AWG conductors
  • Universal wiring (T568A/T568B)
  • Lead-Free (no heavy metals)



Description:



Category 5e patch cords are assembly of 4-pair stranded wire with modular plugs crimped at both ends.They offer a high performance alternative to satin modular line cords where crosstalk, EMI or distance may be considerations.



Specifications:

Conductor Material 7*0.16mm
Diameter(mm) 0.48±0.03
Insulation Material HDPE
Diameter(mm) 0.94±0.05
Core color 1 white-blue/blue 2 white-orange/orange
3 white-green/green 4 white-brown/brown
Sheath Material PVC/LSZH
Thickness(mm) 0.58±0.15
Diameter(mm) 5.2±0.25
Color Non-Brightness Gray
Surface printing Letter high 2.0± 0.5mm
Color Black or White
Print error & Space ≤± 0.5% , 1m
Rated Temperature (℃) 75
Flame test CM
Application Telephone and other communication circuits such as voice, data,



and audio for on-premise customer system

DC Resistance (@20℃),Ω/100m ≤13.5
Min. Insulation Resistance(MΩ·km) ≥ 100
Dielectric Strength AC-500V/1 Min
