| Place of Origin: | Chengdu, China |
|---|---|
| Brand Name: | FHDT |
| Certification: | IEEE802.3an, ISO/IEC 11801-2008, ANSI/TIA-568C.2-2009 |
| Model Number: | Cat.8 S-FTP |
| Minimum Order Quantity: | 500 drums |
| Price: | Negotiable |
| Packaging Details: | Neutral drum, 305m/drum |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | Usually T/T, other terms negotiable |
| Supply Ability: | 3-4 weeks for mass production |
| Product Name: | S-FTP 4 Pairs Cat.8 Ethernet Cable | Number Of Conductors: | 8 |
|---|---|---|---|
| Type: | Cat.8 S-FTP | Application: | Telecommunication / Cabling System |
| Color: | Customized | Jacket Material: | PVC&LSZH |
| Conductor Material: | Oxygen-free Copper Wire | Structure: | 4P Twisted Pair |
| Conductor: | 22 AWG | Quantity: | 305m/drum |
| High Light: | TIA-568-C.2 Cat8 Ethernet Cable,TIA-568-C.2 Cat8 S-FTP,Cat8 S-FTP 4 Pairs Low Cross Talk |
||

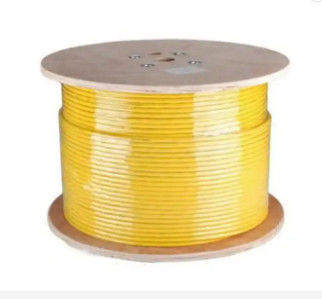

S-FTP 4 Pairs Low Cross Talk Index Cat.8 Ethernet Cable for Telecommunication
Description
This cable is equipped with 22AWG oxygen-free copper wires for optimal 10 Gigabit Ethernet performance. Its highest transmission frequency is 1000MHz, achieving increased crosstalk index of 10dB or more between each pair. The cable is tested up to 100m Channel test or 90m Permanent Link test, and complies with the standards of IEEE802.3an, ISO/IEC 11801-2008, ANSI/TIA-568C.2-2009, CPR, UL and RoHS. Furthermore, it is provided with a 25-year warranty and customizable OEM or ODM options.
Specifications:
| Test Standard | ANSI/TIA-568-C.2,ISO/IEC 11801 | |||||||||||||||||
| Construction | ||||||||||||||||||
| Conductor | Material | Solid Bare Copper |  |
|||||||||||||||
| Diameter(mm) | 22AWG | |||||||||||||||||
| Insulation | Material | HDPE | ||||||||||||||||
| Diameter(mm) | 1.59±0.05 | |||||||||||||||||
| Core color | 1.white-blue/blue | 2.white-orange/orange | ||||||||||||||||
| 3.white-green/green | 4.white-brown/brown | |||||||||||||||||
| Polyester tap | No | Aluminum foil |
Yes |
|||||||||||||||
| Rip cord | 210D*3 | Seperator |
Yes |
|||||||||||||||
| Braid |
Yes |
Coverage | ≥30% | |||||||||||||||
| Sheath | Material | LSZH | ||||||||||||||||
| Thickness(mm) | 0.6±0.1 | |||||||||||||||||
| Diameter(mm) | 8.7±0.5 | |||||||||||||||||
| Color | Black | |||||||||||||||||
| Surface printing | Letter high | 3.0 ± 0.5mm | ||||||||||||||||
| Color | White | |||||||||||||||||
| Print error & Space | ≤± 0.5% , 1m | |||||||||||||||||
| Package:Drum | Package Length:305m | |||||||||||||||||
| Drum Dimensions(mm) | 400*400*320 | |||||||||||||||||
| Electrical Properties | ||||||||||||||||||
| Conductor Resistance (20℃) | ≤7.38 Ω/ 100m | |||||||||||||||||
| Electrical Resistance Unbalance ( 20℃) | ≤2.0% | |||||||||||||||||
| Insulation Resistance | >5000 MΩ·km | |||||||||||||||||
| Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) | ≤160pF/100m | |||||||||||||||||
| Transmission Properties | ||||||||||||||||||
|
Feq |
Zc | IL | RL | NEXT | PS NEXT | ELFEXT | PS ELFEXT | |||||||||||
| Ω | ≤dB/100m | ≥dB | ≥dB/100m | ≥dB/100m | ≥dB/100m | ≥dB/100m | ||||||||||||
| 4.00 | 100±15Ω | 3.7 | 23.0 | 78.0 | 75.0 | 78.0 | 75.0 | |||||||||||
| 8.00 | 5.2 | 24.5 | 78.0 | 75.0 | 77.2 | 74.2 | ||||||||||||
| 10.00 | 5.8 | 25.0 | 78.0 | 75.0 | 75.3 | 72.3 | ||||||||||||
| 16.00 | 7.3 | 25.0 | 78.0 | 75.0 | 71.2 | 68.2 | ||||||||||||
| 20.00 | 8.2 | 25.0 | 78.0 | 75.0 | 69.3 | 66.3 | ||||||||||||
| 25.00 | 9.2 | 24.3 | 78.0 | 75.0 | 67.3 | 64.3 | ||||||||||||
| 31.25 | 10.3 | 23.6 | 78.0 | 75.0 | 65.4 | 62.4 | ||||||||||||
| 62.50 | 14.6 | 21.5 | 78.0 | 75.0 | 59.4 | 56.4 | ||||||||||||
| 100.00 | 18.5 | 20.1 | 75.4 | 72.4 | 55.3 | 52.3 | ||||||||||||
| 200.00 | 100±18Ω | 26.5 | 18.0 | 70.9 | 67.9 | 49.3 | 46.3 | |||||||||||
| 250.00 | 29.7 | 17.3 | 69.4 | 66.4 | 47.3 | 44.3 | ||||||||||||
| 300.00 | 100±25Ω | 32.7 | 17.3 | 68.2 | 65.2 | 45.8 | 42.8 | |||||||||||
| 400.00 | 38.0 | 17.3 | 66.4 | 63.4 | 43.3 | 40.3 | ||||||||||||
| 500.00 | 42.8 | 17.3 | 64.9 | 61.9 | 41.3 | 38.3 | ||||||||||||
| 600.00 | 47.1 | 17.3 | 63.7 | 60.7 | 39.7 | 36.7 | ||||||||||||
| 1000 | 100±35Ω | 61.9 | 15.1 | 60.4 | 57.4 | 35.3 | 32.3 | |||||||||||
| 1500 | 23.2 | 14.0 | 27.7 | 24.7 | 15.5 | 12.5 | ||||||||||||
| 2000 | 27.2 | 13.1 | 25.8 | 22.8 | 13.0 | 10.0 | ||||||||||||
| Environment Temperature | ||||||||||||||||||
| Store | -10～+50℃ | Installation | -5～+40 | Work | -20 ～ +60 | |||||||||||||
| Remark | ||||||||||||||||||
|
a) Ensure pass 30m Channel test and pass 24m Permanent Link test. |
||||||||||||||||||
Applications:
Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.
DATANG CABLE is specialized in R&D, manufacturing, Sales, Distribution of telecommunication cable and accessories in China and worldwide markets. With constant efforts, DATANG CABLE has been a Top10 Cabling System Brand in China since 2009.
DATANG CABLE focuses on cable research and innovation in China since 1965.
With more than 50 years R&D experience, we have contributed in drafting many national standards and other industry standards. DATANG CABLE has a professional technical team and we can offer a strong technical support when necessary.
DATANG CABLE has 3 main workshops: lan cable & accessories, fiber cable & accessories and coaxial cable & accessories workshops. With imported production lines, and well designed modern workshop and experienced team, DATANG CABLE is equipped with big capacity to meet customers demand in home and abroad: Lan Cable: 1 million boxes/year; Coaxial Cable: 80000km/year; Optical Fiber Cable: 3.5 million core km/year.
QUALTIY is always first priority in DATANG CABLE. Company is ISO 9001,ISO 14000 certified, and products are manufactured and tested according to international standards. Products are RoHS, REACH, UL, ETL, CPR certified. OEM&ODM service is available.
Meeting CUSTOMERS demand is always the drive for DATANG CABLE. DATANG CABLE has gained great market share in both domestic and oversea markets because of customer satisfaction. More and more customers are choosing to partner with DATANG CABLE because its strong support and services and constant improvement to meet customers’ requirements. Together with customers, we have overcome many difficulties and improved our ability to serve customers better, and grow together. Annual sales revenue is over 90 million USD and growing each year.
FAQ
Cat.8 S-FTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.
Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production
Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.
Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
