Product Description

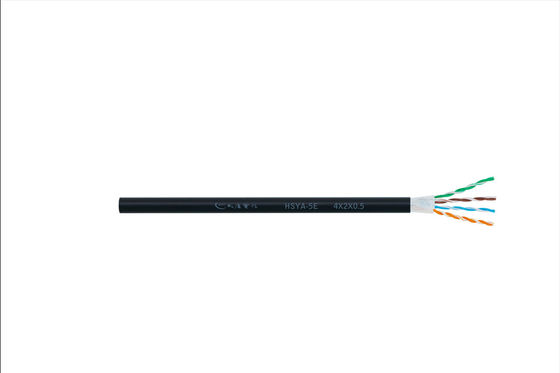

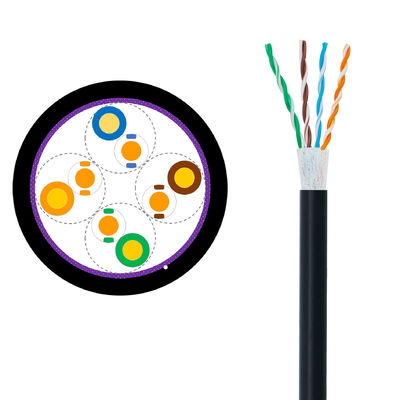

Cat.5E U-UTP Outside Plant Cable
Quick Detail:
- 100MHz transmission frequency
- 24AWG high-quality conductor
- Excellent physical performance
- 100m Channel test pass
- 90m Permanent Link test pass
- ISO/IEC 11801-2008 TIA/EIA-568B.2-2001
- CE, RoHS, CPR, UL compliant
- 3 Year Warranty
- OEM or ODM available
Description:
The conductor adopts 24AWG high-quality oxygen-free copper wire (99.99%). Suitable for Fast Ethernet applications, the highest transmission frequency can reach 100MHz. The Cable can pass 100m Channel test or 90m Permanent Link test. Fully meet and superior to the standards of ISO/IEC 11801-2008 TIA/EIA-568B.2-2001, in line with CPR UL. Accept customization of OEM or ODM
Specifications:
| Test Standard | TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019 | |||||||||
| Construction | ||||||||||
| Conductor | Material | Solid Bare Copper |
|
|||||||
| Diameter(mm) | 0.50 | |||||||||
| Insulation | Material | HDPE | ||||||||
| Diameter(mm) | 0.89~0.90 | |||||||||
| Core color | 1 white-blue/blue | 2 white-orange/orange | ||||||||
| 3 white-green/green | 4 white-brown/brown | |||||||||
| Polyester tap | 20×0.035mm | |||||||||
| Aluminum tape | 22×0.25mm | |||||||||
| Sheath | Material | LLDPE | ||||||||
| Thickness | 1.3±0.1mm | |||||||||
| Diameter | 8.6±0.2mm | |||||||||
| Color | Black | |||||||||
| Surface printing | Letter high | 3.0 ± 0.5mm | ||||||||
| Color | White | |||||||||
| Print error & Space | ≤± 0.5% , 1m | |||||||||
| Package | Reel in box | |||||||||
| Box Dimensions(mm) | 510*510*240 | |||||||||
| Package Length | 305m | |||||||||
| Electrical Properties | ||||||||||
| Conductor Resistance (20℃) | ≤9.5 Ω/ 100m | |||||||||
| Electrical Resistance Unbalance ( 20℃) | ≤2.5% | |||||||||
| Insulation Resistance | >5000 MΩ·km | |||||||||
| Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) | ≤330pF/100m | |||||||||
| Mutual capacitance of a pair | ≤5.6nF/100m | |||||||||
| Transmission Properties(Fluke Testing) | ||||||||||
|
Feq MHZ |
Zin | IL | RL | NEXT | PS NEXT | ELFEXT | PS ELFEXT | |||
| Ω | dB/100m | dB | dB/100m | dB/100m | dB/100m | dB/100m | ||||
| 1.0 | 100±15 | ≤2.04 | ≥20.00 | ≥65.30 | ≥62.30 | ≥64.00 | ≥61.00 | |||
| 4.0 | ≤4.05 | ≥23.01 | ≥56.27 | ≥53.27 | ≥51.96 | ≥48.96 | ||||
| 8.0 | ≤5.77 | ≥24.52 | ≥51.75 | ≥48.75 | ≥45.94 | ≥42.94 | ||||
| 10.0 | ≤6.47 | ≥25.00 | ≥50.30 | ≥47.30 | ≥44.00 | ≥41.00 | ||||
| 16.0 | ≤8.25 | ≥25.00 | ≥47.24 | ≥44.24 | ≥39.92 | ≥36.92 | ||||
| 25.0 | ≤10.42 | ≥24.32 | ≥44.33 | ≥41.33 | ≥36.04 | ≥33.04 | ||||
| 31.2 | ≤11.71 | ≥23.65 | ≥42.89 | ≥39.89 | ≥34.12 | ≥31.12 | ||||
| 62.5 | ≤16.99 | ≥21.54 | ≥38.36 | ≥35.36 | ≥28.08 | ≥25.08 | ||||
| 100 | ≤21.98 | ≥20.11 | ≥35.30 | ≥32.30 | ≥24.00 | ≥21.00 | ||||
| Test Standard | TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019 | |||||||||
| Construction | ||||||||||
| Conductor | Material | Solid Bare Copper |
|
|||||||
| Diameter(mm) | 0.50 | |||||||||
| Insulation | Material | HDPE | ||||||||
| Diameter(mm) | 0.89~0.90 | |||||||||
| Core color | 1 white-blue/blue | 2 white-orange/orange | ||||||||
| 3 white-green/green | 4 white-brown/brown | |||||||||
| Rip cord | Tex111 | |||||||||
| Sheath | Material | PVC/LSZH | ||||||||
| Thickness | 0.6±0.1mm | |||||||||
| Diameter | 5.2±0.2mm | |||||||||
| Color | According to the requires | |||||||||
| Surface printing | Letter high | 3.0 ± 0.5mm | ||||||||
| Color | Black&White | |||||||||
| Print error & Space | ≤± 0.5% , 1m | |||||||||
| Package | Paper box | |||||||||
| Box Dimensions(mm) | 360*360*230 | |||||||||
| Package Length | 305m | |||||||||
| Electrical Properties | ||||||||||
| Conductor Resistance (20℃) | ≤9.5 Ω/ 100m | |||||||||
| Electrical Resistance Unbalance ( 20℃) | ≤2.5% | |||||||||
| Insulation Resistance | >5000 MΩ·km | |||||||||
| Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) | ≤330pF/100m | |||||||||
| Mutual capacitance of a pair | ≤5.6nF/100m | |||||||||
| Transmission Properties(Fluke Testing) | ||||||||||
|
Feq MHZ |
Zin | IL | RL | NEXT | PS NEXT | ELFEXT | PS ELFEXT | |||
| Ω | dB/100m | dB | dB/100m | dB/100m | dB/100m | dB/100m | ||||
| 1.0 | 100±15 | ≤2.04 | ≥20.00 | ≥65.30 | ≥62.30 | ≥64.00 | ≥61.00 | |||
| 4.0 | ≤4.05 | ≥23.01 | ≥56.27 | ≥53.27 | ≥51.96 | ≥48.96 | ||||
| 8.0 | ≤5.77 | ≥24.52 | ≥51.75 | ≥48.75 | ≥45.94 | ≥42.94 | ||||
| 10.0 | ≤6.47 | ≥25.00 | ≥50.30 | ≥47.30 | ≥44.00 | ≥41.00 | ||||
| 16.0 | ≤8.25 | ≥25.00 | ≥47.24 | ≥44.24 | ≥39.92 | ≥36.92 | ||||
| 25.0 | ≤10.42 | ≥24.32 | ≥44.33 | ≥41.33 | ≥36.04 | ≥33.04 | ||||
| 31.2 | ≤11.71 | ≥23.65 | ≥42.89 | ≥39.89 | ≥34.12 | ≥31.12 | ||||
| 62.5 | ≤16.99 | ≥21.54 | ≥38.36 | ≥35.36 | ≥28.08 | ≥25.08 | ||||
| 100 | ≤21.98 | ≥20.11 | ≥35.30 | ≥32.30 | ≥24.00 | ≥21.00 | ||||
Applications:
Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.
