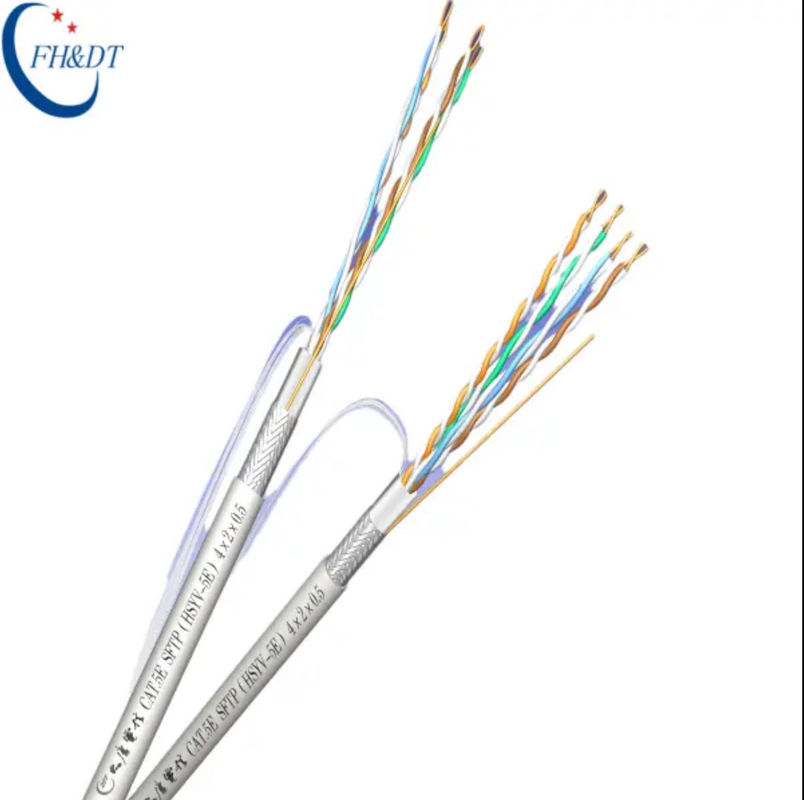

8 Conductors LLDPE Jacket Cat5e UTP 24awg 4 Pair SF-UTP Cable

Basic Information
Place of Origin: Chengdu, China
Brand Name: FHDT
Certification: ISO/IEC 11801-2008, TIA/EIA-568B.2-2001
Model Number: Cat.5E SF-UTP
Minimum Order Quantity: 500 Drums
Price: Negotiable
Packaging Details: Drums
Delivery Time: 3-4 weeks
Payment Terms: Usually T/T, other terms negotiable
Supply Ability: 3-4 weeks for mass production
Detail Information
Number Of Conductors: 8 Type: Cat.5E SF-UTP
Application: Telecommunication / Cabling System Color: Customized
Jacket Material: LLDPE Conductor Material: Oxygen-free Copper Wire
Structure: 4P Twisted Pair Conductor: 24AWG
Packing: Drum
High Light:

8 Conductors cat5e utp 24awg 4 pair

,

LLDPE Jacket cat5e utp 24awg 4 pair

,

24awg LLDPE Jacket SF-UTP Cable


Product Description



Cat.5E SF-UTP Low Cross Talk Lan Cable





Quick Detail:

  • 100MHz transmission frequency
  • 24AWG high-quality conductor
  • Excellent shielding performance
  • 100m Channel test pass
  • 90m Permanent Link test pass
  • ISO/IEC 11801-2008 TIA/EIA-568B.2-2001
  • CE, RoHS, CPR, UL compliant
  • 3 Year Warranty
  • OEM or ODM available



Description:



The conductor adopts 24AWG high-quality oxygen-free copper wire (99.99%). Suitable for Fast Ethernet applications, the highest low cross talk transmission frequency can reach 100MHz. The Cable can pass 100m Channel test or 90m Permanent Link test. Fully meet and superior to the standards of ISO/IEC 11801-2008 TIA/EIA-568B.2-2001, in line with CPR UL. Accept customization of OEM or ODM



Specifications:



Test Standard TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019
Construction
Conductor Material Solid Bare Copper







8 Conductors LLDPE Jacket Cat5e UTP 24awg 4 Pair SF-UTP Cable 0







Diameter(mm) 0.51
Insulation Material HDPE
Diameter(mm) 0.99~1.00
Core color 1 white-blue/blue 2 white-orange/orange
3 white-green/green 4 white-brown/brown
Polyester tap 20×0.035mm Aluminum foil 20×0.075mm
Rip cord Tex111 Drain wire 0.5mmTC
Braid 16/7/0.10mm TC Coverage 60%
Sheath Material PVC/LSZH
Thickness 0.65±0.1mm
Diameter 6.8±0.2mm
Color Medium Grey/Black
Surface printing Letter high 3.0 ± 0.5mm
Color Black&White
Print error & Space ≤± 0.5% , 1m
Package Reel in box
Box Dimensions(mm) 340*310*310
Package Length 305m
Electrical Properties
Conductor Resistance (20℃) ≤9.5 Ω/ 100m
Electrical Resistance Unbalance ( 20℃) ≤2.5%
Insulation Resistance >5000 MΩ·km
Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) ≤330pF/100m
Mutual capacitance of a pair ≤5.6nF/100m
Transmission Properties(Fluke Testing)

Feq

MHZ

Zin IL RL NEXT PS NEXT ELFEXT PS ELFEXT
Ω dB/100m dB dB/100m dB/100m dB/100m dB/100m
1.0 100±15 ≤2.04 ≥20.00 ≥65.30 ≥62.30 ≥64.00 ≥61.00
4.0 ≤4.05 ≥23.01 ≥56.27 ≥53.27 ≥51.96 ≥48.96
8.0 ≤5.77 ≥24.52 ≥51.75 ≥48.75 ≥45.94 ≥42.94
10.0 ≤6.47 ≥25.00 ≥50.30 ≥47.30 ≥44.00 ≥41.00
16.0 ≤8.25 ≥25.00 ≥47.24 ≥44.24 ≥39.92 ≥36.92
25.0 ≤10.42 ≥24.32 ≥44.33 ≥41.33 ≥36.04 ≥33.04
31.2 ≤11.71 ≥23.65 ≥42.89 ≥39.89 ≥34.12 ≥31.12
62.5 ≤16.99 ≥21.54 ≥38.36 ≥35.36 ≥28.08 ≥25.08
100   ≤21.98 ≥20.11 ≥35.30 ≥32.30 ≥24.00 ≥21.00





FAQ

Cat.5E F-UTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.

Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production

Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.

Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
