IEC 60794-1 FRP Outdoor Fiber Cable Gel Filled Fiber Optic Cable GYDXTW

Basic Information
Place of Origin: Chengdu, China
Brand Name: FHDT
Certification: YD / T 1258, IEC 60794-1
Model Number: Stranded Loose Tube Optical Cable - GYDXTW
Minimum Order Quantity: 500 Drums
Price: Negotiable
Packaging Details: No more than 4km/drum
Delivery Time: Depends on specific specifications and demand
Payment Terms: Usually T/T, other terms negotiable
Supply Ability: Depends on specific specifications and demand
Detail Information
Loose Tube: PBT Filler: Polypropylene
Central Strength Member: Fiber Reinforced Plastic(FRP) Water Blocking: Compound Filling Gel
Outer Sheath: HDPE Operation Temperature: -30℃~+60℃
Storage Temperature: -40℃~+60℃
High Light:

IEC 60794-1 FRP Outdoor Fiber Cable

,

gel filled fiber optic cable GYDXTW

,

IEC 60794-1 FRP gel filled fiber optic cable


Product Description

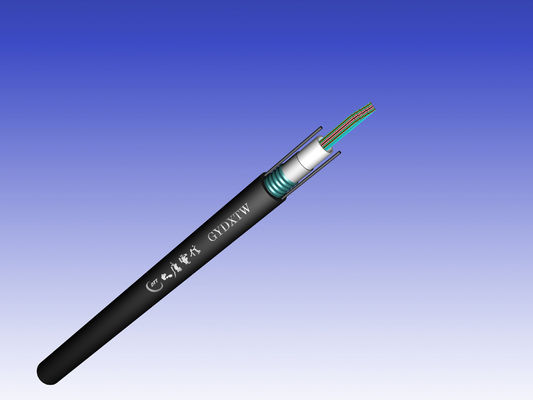

Stranded Loose Tube Optical Cable - GYDXTW



Applications

This product can be used as outdoor distribution lines, feeder or leading lines in access network.



Optical characteristic of optical fiber cable

Type of fiber B1.1 B4
Wavelength(nm) 1310 1550 1550
Attenuation coefficient(max)(dB/km) 0.36 0.22 0.22
PMD M 20 20
Q 0.01% 0.01%
PMDQ(max) 0.5ps/km1/2 0.5ps/km1/2
Zero-dispersion Wavelength(nm) 1300~1324 ——
Zero-dispersion Slope (max) ps/(nm2·km) 0.093 ——
Absolute value of Chromatic Dispersion ps/(nm·km) 1288~1339nm 3.5 ——
1271~1360nm 5.3 ——
1550nm 18.0 ——
1530~1565nm —— 0.1~10.0
Dmax-Dmin 1530~1565nm —— 5.0
cut-off wavelength lcc(nm) ≤1260 ≤1480
Note: If specification at 1600nm is required, Please make it out in the ordering contract.





Structure and Mechanical Characteristics of Cable

Fibre

Count

Steel Wire mm

Loose Tube

Size

(mm)

Sheath

Thickness

mm

Cable

Diameter

(mm)

Cable Weight

(kg)

Strength

Long/Short Term

(N)

Crush

Resistance

(N/100mm)

12~16 1.6 2.7/3.5 3.1 11.5 144 600/1500 300/1000
24 1.6 3.5/4.5 3.1 12.5 165 600/1500 300/1000
36 1.6 4.2/5.2 3.1 13.1 181 600/1500 300/1000
48 1.6 5.8/7.0 3.1 15.0 224 600/1500 300/1000
60~72 1.6 6.2/7.4 3.1 15.4 235 600/1500 300/1000
84~108 1.6 7.3/8.5 3.1 16.5 266 600/1500 300/1000
120 1.6 7.7/9.1 3.1 17.1 284 600/1500 300/1000
132~156 1.6 8.5/9.9 3.1 17.9 308 600/1500 300/1000
168~180 1.6 9.1/10.5 3.1 18.5 326 600/1500 300/1000
192 1.6 9.8/11.2 3.1 19.2 348 600/1500 300/1000





Cable Delivery Length

The standard delivery length of a cable is 1000m, 2000m or 3000m with the tolerance 0~+20m. If special requests are made in the contract, the supplied cable length should conform to it.
