| Brand Name: | FHDT |
| Model Number: | Indoor multi-fiber optical cables |
| MOQ: | 500 Drums |
| Price: | Negotiable |
| Packaging Details: | No more than 4km/drum |
| Payment Terms: | Usually T/T, other terms negotiable |

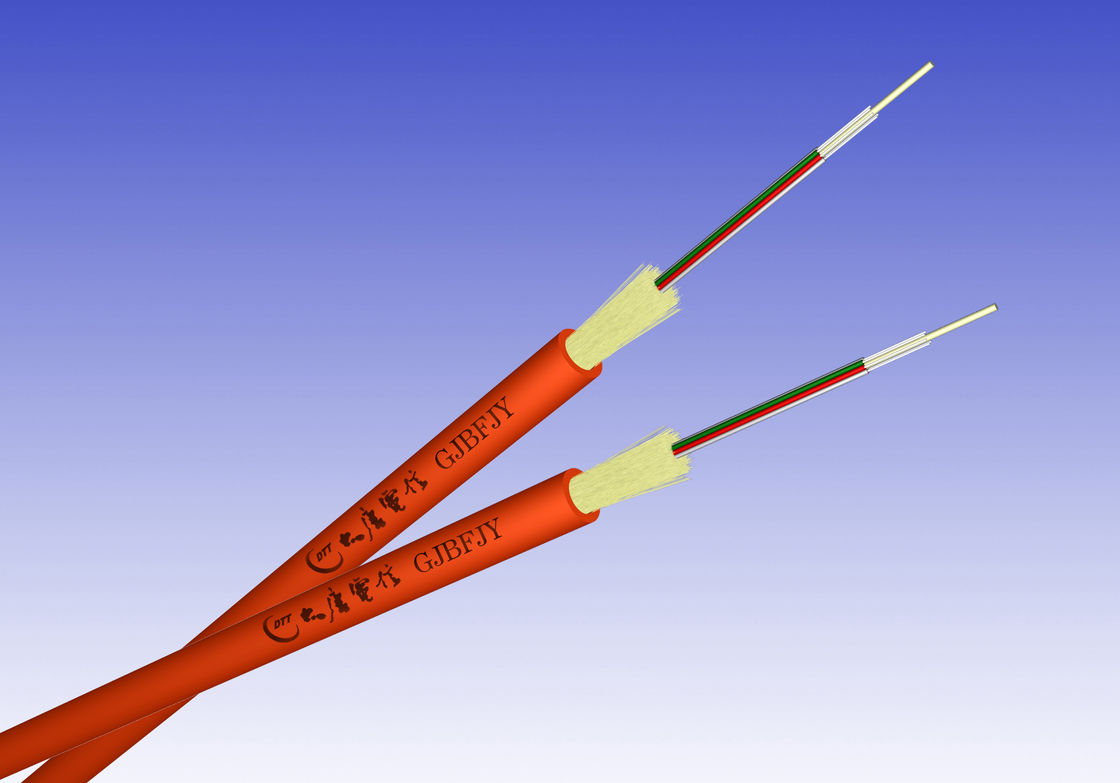

Non metallic reinforcing member, tightly sheathed optical fiber, PVC or LSZH outer sheath, non bundle optical cable for house wiring
The multimode optical fiber is protected by polyolefin material with an outer diameter of 0.9mm. on metallic reinforcing member, tightly sheathed optical fiber, PVC or LSZH outer sheath,, non bundle optical cable for house wiring
Recommended: Vertical layout, horizontal layout
Single mode optical fiber or multimode optical fiber shall be selected according to the needs of users
The standard structure of cable is shown in the following table, other structure and fiber count are also available according to customer requirements.
| Item | Contents | Value | |||
| 4 | 6 | 8 | 12 | ||
| Tight sleeve | Material | PVC or LSZH | |||
| Outer diameter (mm) | 0.9 | ||||
| Number of fiber | - | 4 | 6 | 8 | 12 |
| strength member | Material | Aramid yarn | |||
| Outer sheath | Material | PVC or LSZH | |||
| Color |
OM1 or OM2:Orange OM3:Aqua Green OM4:Violet G652D or G657 :Yellow |
||||
| Nominal Thickness (mm) | 0.5 | 0.7 | 0.7 | 0.8 | |
| Cable diameter(mm) Approx. | 4.8 | 5.2 | 5.4 | 6.2 | |
| Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Blue | OR | GR | BR | Slate | White | Red | Black | YE | Violet | Pink | Aqua |
| Item | Value | |
| Tensile performance(N) | 660 | |
| Crush(N/100mm) | 1000 | |
| Minimum Bending radius | Dynamic | 20 times of cable diameter |
| Static | 10 times of cable diameter | |
| Operation temperature: | -10℃～+60℃ | |
| Installation temperature | -20℃～+60℃ | |
| Storage temperature | -20℃～+60℃ | |
| Note: The optical cable complies with YD / T 1258 and IEC 60794-1 standards | ||
The standard delivery length of a cable is 1000m or 2000m with the tolerance 0～+20m. If special requests are made in the contract, the supplied cable length should conform to it.
|
