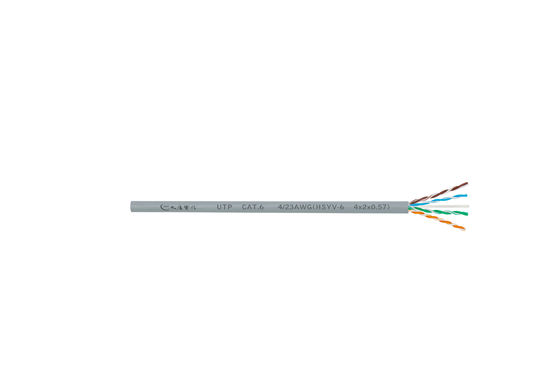

350MHz Transmission Frequency Cat6 Ethernet Cable Cat6 U UTP 4P Twisted Pair 24AWG 23AWG

Cat.6 U-UTP 4 Pairs High Performance Lan Cable

Quick Detail:

• 350MHz transmission frequency
• 24AWG or 23AWG high-quality conductor
• Excellent fire resistance
• 100m Channel test pass
• 90m Permanent Link test pass
• ISO/IEC 11801-2008 TIA/EIA-568B.2-2001
• CE, RoHS, CPR, UL compliant
• 25 Years Warranty
• OEM or ODM available

Description:

The conductor adopts 24AWG or 23AWG high-quality oxygen-free copper wire (99.99%). Suitable for Gigabit Ethernet applications, the highest transmission frequency can reach 350MHz. The Cable can pass 100m Channel test or 90m Permanent Link test. Fully meet and superior to the standards of ISO/IEC 11801-2008 TIA/EIA-568B.2-2001, in line with CPR UL. Accept customization of OEM or ODM

Specifications:

Test Standard

ANSI/TIA-568-C.2,ISO/IEC 11801

Construction

Conductor

Material

Solid Bare Copper

Diameter(mm)

24AWG

Insulation

Material

HDPE

Diameter(mm)

0.92±0.05

Core color

1.white-blue/blue

2.white-orange/orange

3.white-green/green

4.white-brown/brown

Rip cord

210D*3 Drain wire No

Seperator

Yes

Sheath

Material

PVC&LSZH

Thickness(mm)

0.6±0.1

Diameter(mm)

5.6±0.5

Color

White

Surface printing

Letter high

3.0 ± 0.5mm

Color

Black

Package:Reel in box

Package Length:305m

Print error & Space

≤± 0.5% , 1m

Box Dimensions(mm)

405*230*405

Electrical Properties

Conductor Resistance (20℃)

≤9.5 Ω/ 100m

Electrical Resistance Unbalance ( 20℃)

≤2.0%

Insulation Resistance

>5000 MΩ·km

Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz)

≤160pF/100m

Transmission Properties

Feq MHZ

Zc

IL

RL

NEXT

PS NEXT

ELFEXT

PS ELFEXT

Ω

dB/100m

dB

dB/100m

dB/100m

dB/100m

dB/100m

1.0

100±15

≤2.0

≥20.0

≥74.3

≥72.3

≥67.8

≥64.8

4.0

≤3.8

≥23.0

≥65.3

≥63.3

≥55.8

≥52.8

8.0

≤5.3

≥24.5

≥60.8

≥58.8

≥49.7

≥46.7

10.0

≤6.0

≥25.0

≥59.3

≥57.3

≥47.8

≥44.8

16.0

≤7.6

≥25.0

≥56.2

≥54.2

≥43.7

≥40.7

20.0

≤8.5

≥25.0

≥54.8

≥52.8

≥41.8

≥38.8

25.0

≤9.5

≥24.3

≥53.3

≥51.3

≥39.8

≥36.8

31.25

≤10.7

≥23.6

≥51.9

≥49.9

≥37.9

≥34.9

62.5

≤15.4

≥21.5

≥47.4

≥45.4

≥31.9

≥28.9

100

≤19.8

≥20.1

≥44.3

≥42.3

≥27.8

≥24.8

200

≤29.0

≥18.0

≥39.8

≥37.8

≥21.8

≥18.8

250

≤32.8

≥17.3

≥38.3

≥36.3

≥19.8

≥16.8

Environment Temperature

Store

-10～+50℃

Installation

-5～+40

Work

-20 ～ +60

Remark

a) The Cable can pass 100m Channel test or 90m Permanent Link test. b) Insulation Outer Diameter, Sheath Outer Diameter and Packaging Dimensions are for reference only.


Applications:

Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.

• National University of Singapore Teaching Building

• Singapore Government HDB

​

• Chengdu Metro Cabling


FAQ

Cat.6 U-UTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.

Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production

Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.

Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
