| Number Of Conductors: | 8 | Type: | Cat.5E F-UTP |
|---|---|---|---|
| Application: | Telecommunication / Cabling System | Color: | Customized |
| Jacket Material: | LLDPE | Conductor Material: | Oxygen-free Copper Wire |
| Structure: | 4P Twisted Pair | Conductor: | 24 AWG |
| Packing: | Drum | ||
| High Light: | 4P Twisted Pair Cat5E F UTP,4P Twisted Pair oxygen free copper wire,ISO Cat5E F UTP oxygen free copper wire |
||

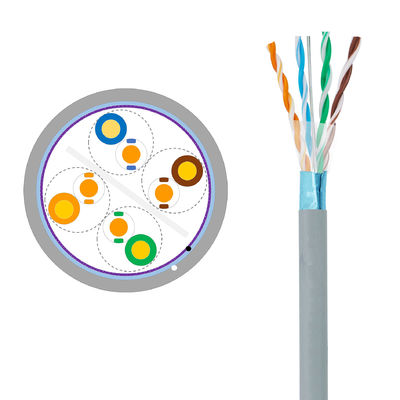

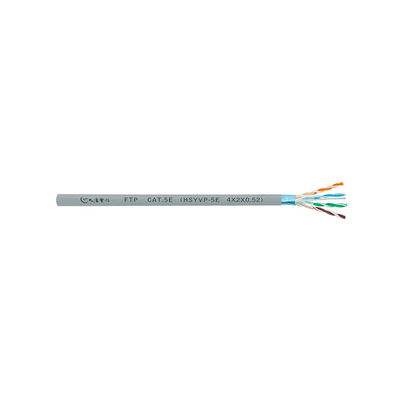

Cat.5E F-UTP 4 Pairs Outdoor Shielded Lan Cable
Quick Detail:
Description:
The conductor adopts 24AWG high-quality oxygen-free copper wire (99.99%). Suitable for Fast Ethernet applications, the highest transmission frequency can reach 100MHz. Design of double jacket could provide better protection. The Cable can pass 100m Channel test or 90m Permanent Link test. Fully meet and superior to the standards of ISO/IEC 11801-2008 TIA/EIA-568B.2-2001, in line with CPR UL. Accept customization of OEM or ODM
Specifications:
| Test Standard | TIA/EIA-568C.2,ISO_IEC 11801 | ||||||||||||||||||||
| Construction | |||||||||||||||||||||
| Conductor | Material | Solid Bare Copper |
|
||||||||||||||||||
| Diameter(mm) | 24AWG | ||||||||||||||||||||
| Insulation | Material | HDPE | |||||||||||||||||||
| Diameter(mm) | 0.97±0.03 | ||||||||||||||||||||
| Core color | 1 white-blue/blue | 2 white-orange/orange | |||||||||||||||||||
| 3 white-green/green | 4 white-brown/brown | ||||||||||||||||||||
| Polyester tap | Yes | Aluminum foil |
YES |
||||||||||||||||||
| Rip cord | 210D | Drain wire | Yes,TC | ||||||||||||||||||
| Jacket | Material | LLDPE | |||||||||||||||||||
| Thickness | 0.75±0.1mm | ||||||||||||||||||||
| Diameter | 6.7±0.5mm | Package | Drum in box | ||||||||||||||||||
| Color | Black | ||||||||||||||||||||
|
Surface printing |
Letter high | 3.0 ± 0.5mm | |||||||||||||||||||
| Color | White | ||||||||||||||||||||
| Box Dimensions(mm) | 405*405*330(Internal dimensions) | ||||||||||||||||||||
| Print error & Space | ≤± 0.5% , 1m | Package Length | 305m | ||||||||||||||||||
| Electrical Properties | |||||||||||||||||||||
| Conductor Resistance (20℃) | ≤9.38 Ω/ 100m | ||||||||||||||||||||
| Electrical Resistance Unbalance ( 20℃) | ≤2.0% | ||||||||||||||||||||
| Insulation Resistance | >5000 MΩ·km | ||||||||||||||||||||
| Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) | ≤160pF/100m | ||||||||||||||||||||
| Mutual capacitance of a pair | ≤5.6nF/100m | ||||||||||||||||||||
| Transmission Properties | |||||||||||||||||||||
|
Feq |
Zin | IL | RL | NEXT | PS NEXT | ELFEXT | PS ELFEXT | ||||||||||||||
| Ω | dB/100m | dB | dB/100m | dB/100m | dB/100m | dB/100m | |||||||||||||||
| 1.0 | 100±15 | ≤2.04 | ≥20.00 | ≥65.30 | ≥62.30 | ≥64.00 | ≥61.00 | ||||||||||||||
| 4.0 | ≤4.05 | ≥23.01 | ≥56.27 | ≥53.27 | ≥51.96 | ≥48.96 | |||||||||||||||
| 8.0 | ≤5.77 | ≥24.52 | ≥51.75 | ≥48.75 | ≥45.94 | ≥42.94 | |||||||||||||||
| 10.0 | ≤6.47 | ≥25.00 | ≥50.30 | ≥47.30 | ≥44.00 | ≥41.00 | |||||||||||||||
| 16.0 | ≤8.25 | ≥25.00 | ≥47.24 | ≥44.24 | ≥39.92 | ≥36.92 | |||||||||||||||
| 25.0 | ≤10.42 | ≥24.32 | ≥44.33 | ≥41.33 | ≥36.04 | ≥33.04 | |||||||||||||||
| 31.2 | ≤11.71 | ≥23.65 | ≥42.89 | ≥39.89 | ≥34.12 | ≥31.12 | |||||||||||||||
| 62.5 | ≤16.99 | ≥21.54 | ≥38.36 | ≥35.36 | ≥28.08 | ≥25.08 | |||||||||||||||
| 100 | ≤21.98 | ≥20.11 | ≥35.30 | ≥32.30 | ≥24.00 | ≥21.00 | |||||||||||||||
| Environment Temperature | |||||||||||||||||||||
| Store | -10～+50℃ | Installation | -5～+40 | Work | -20 ～ +75 | ||||||||||||||||
| Remark | |||||||||||||||||||||
|
|||||||||||||||||||||
Applications:
Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.
