| Place of Origin: | Chengdu, China |
|---|---|
| Brand Name: | FHDT |
| Certification: | IEEE802.3an, ISO/IEC 11801-2008, ANSI/TIA-568C.2-2009 |
| Model Number: | Cat.7 S-FTP |
| Minimum Order Quantity: | 500 drums |
| Price: | Negotiable |
| Packaging Details: | Neutral drum, 305m/drum |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | Usually T/T, other terms negotiable |
| Supply Ability: | 3-4 weeks for mass production |
| Number Of Conductors: | 8 | Type: | Cat.7 S-FTP |
|---|---|---|---|
| Application: | Telecommunication / Cabling System | Color: | Customized |
| Jacket Material: | PVC&LSZH | Conductor Material: | Oxygen-free Copper Wire |
| Structure: | 4P Twisted Pair | Conductor: | 23 AWG |
| Packing: | Neutral Drum | Quantity: | 305m/d |
| High Light: | 305m/d cable ethernet cat 7 sftp,Low Crosstalk cable ethernet cat 7 sftp,Lan cable ethernet TIA-568 C.2-2009 |
||

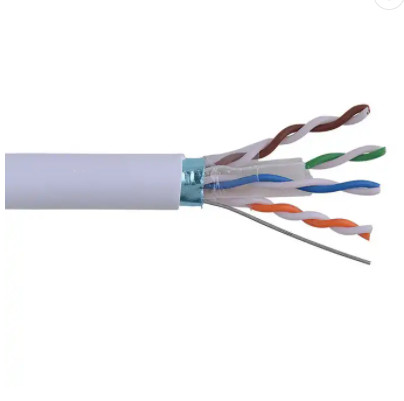

Cat.7 S-FTP 4 Pairs Low Cross Talk Index Lan Cable
Description
This Cat.7 S-FTP 4 Pairs Low Cross Talk Index Lan Cable is designed with a high-quality 23AWG conductor and aluminum foil sub-shield and silk layer general shield for outstanding crosstalk index. It is compliant with IEEE802.3an, ISO/IEC 11801-2008, ANSI/TIA-568C.2-2009, CE, RoHS, CPR, and UL standards, and is suitable for 10 Gigabit Ethernet applications with a transmission frequency of up to 600MHz. It has passed a 100m Channel test or 90m Permanent Link test, and comes with a 25 year warranty. OEM or ODM customization is available.
Specifications:
| Test Standard | ISO/IEC 61156.5,IEEE 802.3,YD/T 1019 | ||||||||||||||
| Construction | |||||||||||||||
| Conductor | Material | Solid Bare Copper | | ||||||||||||
| Diameter(mm) | 0.58 | ||||||||||||||
| Insulation | Material | Skin-foam-skin PE | |||||||||||||
| Diameter(mm) | 1.35 | ||||||||||||||
| Core color | 1 white-blue/blue | 2 white-orange/orange | |||||||||||||
| 3 white-green/green | 4 white-brown/brown | ||||||||||||||
| Aluminum foil | 14×0.075mm | Braid(mm) | 16/7/0.10,TC | ||||||||||||
| Rip cord | Tex111 | Coverage | ≥40% | ||||||||||||
| Sheath | Material | PVC/LSZH | |||||||||||||
| Thickness | 0.65±0.1mm | ||||||||||||||
| Diameter | 8.2±0.2mm | ||||||||||||||
| Color | Medium Grey/Black | ||||||||||||||
| Surface printing | Letter high | 3.0 ± 0.5mm | |||||||||||||
| Color | Black&White | ||||||||||||||
| Print error & Space | ≤± 0.5% , 1m | ||||||||||||||
| Package | Reel in box | Package Length | 305m | ||||||||||||
| Box Dimensions(mm) | 510*510*240 | ||||||||||||||
| Electrical Properties | |||||||||||||||
| Conductor Resistance (20℃) | ≤9.5 Ω/ 100m | ||||||||||||||
| Electrical Resistance Unbalance ( 20℃) | ≤2.0% | ||||||||||||||
| Insulation Resistance | >5000 MΩ·km | ||||||||||||||
| Pair to Ground Capacitance Unbalance(0.8 kHz or 1kHz) | ≤330 pF/100m | ||||||||||||||
| Mutual capacitance of a pair | ≤5.6 nF/100m | ||||||||||||||
| Delay Skew | ≤25 ns/100m | ||||||||||||||
| Transmission Properties(Fluke Testing) | |||||||||||||||
Feq | PHASE DELAY | IL | RL | NEXT | PS NEXT | ELFEXT | PS ELFEXT | ||||||||
| ≤ns/100m | ≤dB/100m | ≥dB | ≥dB/100m | ≥dB/100m | ≥dB/100m | ≥dB/100m | |||||||||
| 1.0 | 570 | 2.0 | 20.0 | 78.0 | 75.0 | 78.0 | 75.0 | ||||||||
| 4.0 | 552 | 3.7 | 23.0 | 78.0 | 75.0 | 78.0 | 75.0 | ||||||||
| 8.0 | 547 | 5.2 | 24.5 | 78.0 | 75.0 | 77.2 | 74.2 | ||||||||
| 10.0 | 545 | 5.9 | 25.0 | 78.0 | 75.0 | 75.3 | 72.3 | ||||||||
| 16.0 | 543 | 7.4 | 25.0 | 78.0 | 75.0 | 71.2 | 68.2 | ||||||||
| 20.0 | 542 | 8.3 | 25.0 | 78.0 | 75.0 | 69.3 | 66.3 | ||||||||
| 25.0 | 541 | 9.3 | 24.3 | 78.0 | 75.0 | 67.3 | 64.3 | ||||||||
| 31.25 | 540 | 10.4 | 23.6 | 78.0 | 75.0 | 65.4 | 62.4 | ||||||||
| 62.5 | 539 | 14.9 | 21.5 | 75.5 | 72.5 | 59.4 | 56.4 | ||||||||
| 100 | 538 | 19.0 | 20.1 | 72.4 | 69.4 | 55.3 | 52.3 | ||||||||
200 | 537 | 27.5 | 18.0 | 67.9 | 64.9 | 49.3 | 46.3 | ||||||||
| 250 | 536 | 31.0 | 17.3 | 66.4 | 63.4 | 47.3 | 44.3 | ||||||||
| 300 | 536 | 34.2 | 17.3 | 65.2 | 62.2 | 45.8 | 42.8 | ||||||||
| 400 | 536 | 40.0 | 17.3 | 63.4 | 60.4 | 43.3 | 40.3 | ||||||||
| 500 | 536 | 45.3 | 17.3 | 61.9 | 58.9 | 41.3 | 38.3 | ||||||||
| 600 | 535 | 50.1 | 17.3 | 60.7 | 57.7 | 39.7 | 36.7 | ||||||||
Applications:
Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.
FAQ
Cat.7 S-FTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.
Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production
Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.
Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
