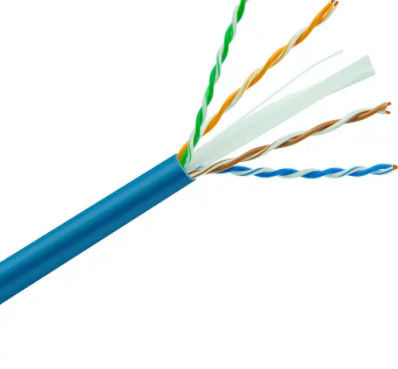

IEC 11801 PE Sheath Cat6 Ethernet Cable 4 Pair 24AWG For Telecommunication

Cat.6 SF-FTP 4 Pairs Low Corss Talk Cat.6 Ethernet Cable For Telecommunication

Description

Cat.6 SF-FTP Low Cross Tallan Cable is a high-quality cable that is designed to provide excellent shielding performance. It features a 350MHz transmission frequency, 23AWG high-quality conductor, and a low crosstalk index. This cable can pass 100m Channel test or 90m Permanent Link test, and is CE, RoHS, CPR, and UL compliant. It is also customizable with OEM or ODM options and comes with a 3 year warranty.

The Cat.6 SF-FTP Low Cross Tallan Cable is widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building generic cabling system, and the cabling between user telecommunication outlet and distribution frame in residential cabling system. It is an ideal choice for data communication applications and can deliver reliable performance.

Quick Detail:

• 350MHz transmission frequency
• 23AWG high-quality conductor
• Excellent shielding performance
• Low crosstalk index
• 100m Channel test pass
• 90m Permanent Link test pass
• ISO/IEC 11801-2008 TIA/EIA-568B.2-2001
• CE, RoHS, CPR, UL compliant
• 3 Year Warranty
• OEM or ODM available

Specifications:

Test Standard

ANSI/TIA-568-C.2,ISO/IEC 11801

Construction

Conductor

Material

Solid Bare Copper

Diameter(mm)

23AWG

Insulation

Material

HDPE

Diameter(mm)

1.09±0.05

Core color

1.white-blue/blue

2.white-orange/orange

3.white-green/green

4.white-brown/brown

Polyester tap

Yes

Aluminum foil

Yes

Coverage

≥30%

Braid

Yes

Rip cord

210D

Separator

Yes

Surface printing

Letter high

3.0 ± 0.5mm

Sheath

Material

PE

Color

White

Thickness(mm)

0.75±0.1

Print error & Space

≤± 0.5% , 1m

Diameter(mm)

7.9±0.5

Package: Drum

Package Length:305m

Color

Black

Drum (mm)

400*400*320

Electrical Properties

Conductor Resistance (20℃)

≤9.5 Ω/ 100m

Electrical Resistance Unbalance ( 20℃)

≤2.0%

Insulation Resistance

>5000 MΩ·km

Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz)

≤160pF/100m

Transmission Properties

Feq MHZ

Zin

IL

RL

NEXT

PS NEXT

ELFEXT

PS ELFEXT

Ω

dB/100m

dB

dB/100m

dB/100m

dB/100m

dB/100m

1.0

100±15

≤2.0

≥20.0

≥74.3

≥72.3

≥68

≥65.0

4.0

≤5.3

≤24.5

≥61.8

≥58.8

≥49.9

≥46.9

8.0

≤6.0

≤25.0

≥60.3

≥57.3

≥48.0

≥45.0

10.0

≤7.6

≤25.0

≥57.2

≥54.2

≥43.9

≥40.9

16.0

≤8.5

≤25.0

≥55.8

≥52.8

≥42.0

≥39.0

20.0

≤9.5

≤24.3

≥54.3

≥51.3

≥40.0

≥37.0

25.0

≤10.7

≤23.6

≥52.9

≥49.9

≥38.1

≥35.1

31.25

≤15.4

≤21.5

≥48.4

≥45.4

≥32.1

≥29.1

62.5

≤19.8

≤20.1

≥45.3

≥42.3

≥28.0

≥25.0

100

≤29.0

≤18.0

≥40.8

≥37.8

≥22.0

≥19.0

200

≤32.8

≤17.3

≥39.3

≥36.3

≥20.0

≥17.0

250

≤32.8

≤17.3

≥39.3

≥36.3

≥20.0

≥17.0

Environment Temperature

Store

-10～+50℃

Installation

-5～+40

Work

-20 ～ +60

Remark

a) The Cable can pass 100m Channel test or 90m Permanent Link test. b) Insulation Outer Diameter, Sheath Outer Diameter and Packaging Dimensions are for reference only.

• National University of Singapore Teaching Building

• Singapore Government HDB

​

• Chengdu Metro Cabling

DATANG CABLE is specialized in R&D, manufacturing, Sales, Distribution of telecommunication cable and accessories in China and worldwide markets. With constant efforts, DATANG CABLE has been a Top10 Cabling System Brand in China since 2009.

DATANG CABLE focuses on cable research and innovation in China since 1965.

With more than 50 years R&D experience, we have contributed in drafting many national standards and other industry standards. DATANG CABLE has a professional technical team and we can offer a strong technical support when necessary.

DATANG CABLE has 3 main workshops: lan cable & accessories, fiber cable & accessories and coaxial cable & accessories workshops. With imported production lines, and well designed modern workshop and experienced team, DATANG CABLE is equipped with big capacity to meet customers demand in home and abroad: Lan Cable: 1 million boxes/year; Coaxial Cable: 80000km/year; Optical Fiber Cable: 3.5 million core km/year.

FAQ

Cat.6 SF-FTPLan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.

Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production

Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.

Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
