4P Twisted Pair Utp Cable Cat6 Network Cable 350MHz Transmission Frequency

Basic Information
Place of Origin: Chengdu, China
Brand Name: FHDT
Certification: ISO/IEC 11801-2008, TIA/EIA-568B.2-2001
Model Number: Cat.6 F-UTP
Minimum Order Quantity: 500 drum
Price: Negotiable
Packaging Details: Neutral drum, 305m/drum
Delivery Time: 3-4 weeks
Payment Terms: Usually T/T, other terms negotiable
Supply Ability: 3-4 weeks for mass production
Detail Information
Number Of Conductors: 8 Type: Cat.6 F-UTP
Application: Telecommunication / Cabling System Color: Customized
Jacket Material: PVC&LSZH Conductor Material: Oxygen-free Copper Wire
Structure: 4P Twisted Pair Conductor: 24 AWG
Packing: Neutral Drum Quantity: 305m/drum
Highlight:

4P Twisted Pair utp cable cat6

,

utp cable cat6 350MHz

,

cat6 network cable 350MHz


Product Description



Cat.6 F-UTP 4 Pairs Low Corss Take Lan Cable



Quick Detail:

  • 350MHz transmission frequency
  • 23AWG high-quality conductor
  • Excellent shielding performance
  • 100m Channel test pass
  • 90m Permanent Link test pass
  • ISO/IEC 11801-2008 TIA/EIA-568B.2-2001
  • CE, RoHS, CPR, UL compliant
  • 3 Year Warranty
  • OEM or ODM available



Description:



The conductor adopts 23AWG high-quality oxygen-free copper wire (99.99%). Suitable for Gigabit Ethernet applications, the highest transmission frequency can reach 350MHz. The Cable can pass 100m Channel test or 90m Permanent Link test. Fully meet and superior to the standards of ISO/IEC 11801-2008 TIA/EIA-568B.2-2001, in line with CPR UL. Accept customization of OEM or ODM



Specifications:



Test Standard TIA/EIA-568C.2,ISO_IEC 11801,YD/T 1019
Construction
Conductor Material Solid Bare Copper

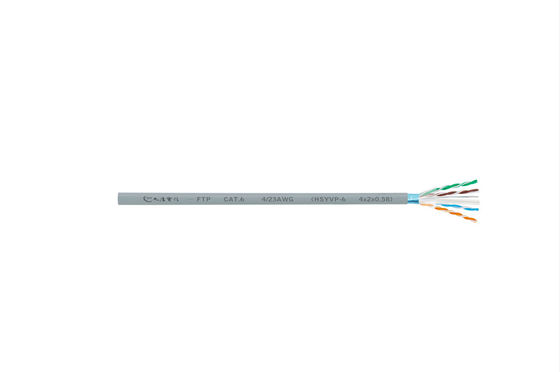

4P Twisted Pair Utp Cable Cat6 Network Cable 350MHz Transmission Frequency 0





Diameter(mm) 23AWG
Insulation Material HDPE
Diameter(mm) 1.09±0.05
Core color 1 white-blue/blue 2 white-orange/orange
3 white-green/green 4 white-brown/brown
Polyester tap Yes Aluminum foil Yes
Rip cord 210D Drain wire Yes,TC
Seperator Yes
Sheath Material PVC&LSZH
Thickness 0.6±0.1mm
Diameter 7.6±0.5mm
Color Grey
Surface printing Letter high 3.0 ± 0.5mm Package Drum
Color White Box Dimensions(mm) 400*400*320
Print error & Space ≤± 0.5% , 1m Package Length 305m
Electrical Properties
Conductor Resistance (20℃) ≤7.38 Ω/ 100m
Electrical Resistance Unbalance ( 20℃) ≤2.0%
Insulation Resistance >5000 MΩ·km
Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) ≤160pF/100m
Transmission Properties

Feq

MHZ

Zin IL RL NEXT PS NEXT ELFEXT PS ELFEXT
Ω dB/100m dB dB/100m dB/100m dB/100m dB/100m
1.0 100±15 ≤2.0 ≥20.0 ≥74.3 ≥72.3 ≥67.8 ≥64.8
4.0 ≤3.8 ≥23.0 ≥65.3 ≥63.3 ≥55.8 ≥52.8
8.0 ≤5.3 ≥24.5 ≥60.8 ≥58.8 ≥49.7 ≥46.7
10.0 ≤6.0 ≥25.0 ≥59.3 ≥57.3 ≥47.8 ≥44.8
16.0 ≤7.6 ≥25.0 ≥56.2 ≥54.2 ≥43.7 ≥40.7
20.0 ≤8.5 ≥25.0 ≥54.8 ≥52.8 ≥41.8 ≥38.8
25.0 ≤9.5 ≥24.3 ≥53.3 ≥51.3 ≥39.8 ≥36.8
31.25 ≤10.7 ≥23.6 ≥51.9 ≥49.9 ≥37.9 ≥34.9
62.5 ≤15.4 ≥21.5 ≥47.4 ≥45.4 ≥31.9 ≥28.9
100 ≤19.8 ≥20.1 ≥44.3 ≥42.3 ≥27.8 ≥24.8

200



≤29.0 ≥18.0 ≥39.8 ≥37.8 ≥21.8 ≥18.8
250 ≤32.8 ≥17.3 ≥38.3 ≥36.3 ≥19.8 ≥16.8
Environment Temperature
Store -10~+50℃ Installation -5~+40 Work -20 ~ +60
Remark

a) The Cable can pass 90m Channel test or 80m Permanent Link test.

b) Insulation Outer Diameter, Sheath Outer Diameter and Packaging Dimensions are for reference only.



Applications:

Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.
  • National University of Singapore Teaching Building

4P Twisted Pair Utp Cable Cat6 Network Cable 350MHz Transmission Frequency 1


  • Singapore Government HDB

4P Twisted Pair Utp Cable Cat6 Network Cable 350MHz Transmission Frequency 2

  • Chengdu Metro Cabling

4P Twisted Pair Utp Cable Cat6 Network Cable 350MHz Transmission Frequency 3




DATANG CABLE is specialized in R&D, manufacturing, Sales, Distribution of telecommunication cable and accessories in China and worldwide markets. With constant efforts, DATANG CABLE has been a Top10 Cabling System Brand in China since 2009.



DATANG CABLE focuses on cable research and innovation in China since 1965.



With more than 50 years R&D experience, we have contributed in drafting many national standards and other industry standards. DATANG CABLE has a professional technical team and we can offer a strong technical support when necessary.



DATANG CABLE has 3 main workshops: lan cable & accessories, fiber cable & accessories and coaxial cable & accessories workshops. With imported production lines, and well designed modern workshop and experienced team, DATANG CABLE is equipped with big capacity to meet customers demand in home and abroad: Lan Cable: 1 million boxes/year; Coaxial Cable: 80000km/year; Optical Fiber Cable: 3.5 million core km/year.



QUALTIY is always first priority in DATANG CABLE. Company is ISO 9001,ISO 14000 certified, and products are manufactured and tested according to international standards. Products are RoHS, REACH, UL, ETL, CPR certified. OEM&ODM service is available.



Meeting CUSTOMERS demand is always the drive for DATANG CABLE. DATANG CABLE has gained great market share in both domestic and oversea markets because of customer satisfaction. More and more customers are choosing to partner with DATANG CABLE because its strong support and services and constant improvement to meet customers’ requirements. Together with customers, we have overcome many difficulties and improved our ability to serve customers better, and grow together. Annual sales revenue is over 90 million USD and growing each year.



FAQ

Cat.6 F-UTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.

Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production

Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.

Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
