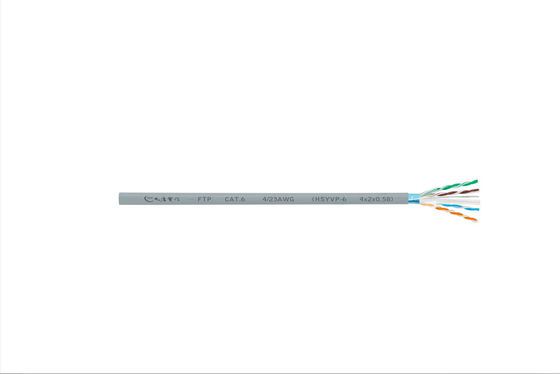

Low Crosstalk Index SF-FTP Cat6 Cable 4 Pair Oxygen-Free Copper Wire

Basic Information
Place of Origin: Chengdu, China
Brand Name: FHDT
Certification: ISO/IEC 11801-2008, TIA/EIA-568B.2-2001
Model Number: Cat.6 F-UTP
Minimum Order Quantity: 500 drum
Price: Negotiable
Packaging Details: Neutral drum, 305m/drum
Delivery Time: 3-4 weeks
Payment Terms: Usually T/T, other terms negotiable
Supply Ability: 3-4 weeks for mass production
Detail Information
Number Of Conductors: 8 Type: Cat.6 F-UTP
Application: Telecommunication / Cabling System Color: Customized
Jacket Material: PVC&LSZH Conductor Material: Oxygen-free Copper Wire
Structure: 4P Twisted Pair Conductor: 24 AWG
Packing: Neutral Drum Quantity: 305m/drum
High Light:

SF-FTP cat6 cable 4 pair

,

Low crosstalk index cat6 cable 4 pair

,

SF-FTP Oxygen-free copper wire


Product Description



Cat.6 SF-FTP Low Cross TalLan Cable



Quick Detail:

  • 350MHz transmission frequency
  • 23AWG high-quality conductor
  • Excellent shielding performance
  • Low crosstalk index
  • 100m Channel test pass
  • 90m Permanent Link test pass
  • ISO/IEC 11801-2008 TIA/EIA-568B.2-2001
  • CE, RoHS, CPR, UL compliant
  • 3 Year Warranty
  • OEM or ODM available



Description:



The conductor adopts 23AWG high-quality oxygen-free copper wire (99.99%). Suitable for Gigabit Ethernet applications, the highest transmission frequency can reach 350MHz. Design in aluminum foil sub-shield, the crosstalk index between each pair should be increased by no less than 10dB. The Cable can pass 100m Channel test or 90m Permanent Link test. Fully meet and superior to the standards of ISO/IEC 11801-2008 TIA/EIA-568B.2-2001, in line with CPR UL. Accept customization of OEM or ODM





Specifications:



Test Standard ANSI/TIA-568-C.2,ISO/IEC 11801

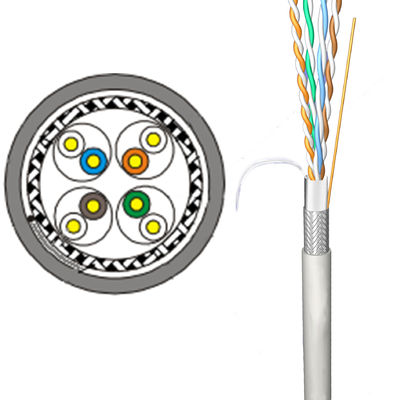

Construction
Conductor Material Solid Bare Copper Low Crosstalk Index SF-FTP Cat6 Cable 4 Pair Oxygen-Free Copper Wire 0
Diameter(mm) 23AWG
Insulation Material HDPE
Diameter(mm) 1.09±0.05
Core color 1.white-blue/blue 2.white-orange/orange
3.white-green/green 4.white-brown/brown
Polyester tap Yes Aluminum foil

Yes



Coverage ≥30% Braid

Yes



Rip cord 210D Separator

Yes



Surface printing Letter high 3.0 ± 0.5mm
Sheath Material PE Color White
Thickness(mm) 0.75±0.1 Print error & Space ≤± 0.5% , 1m
Diameter(mm) 7.9±0.5 Package: Drum Package Length:305m
Color Black Drum (mm) 400*400*320
Electrical Properties
Conductor Resistance (20℃) ≤9.5 Ω/ 100m
Electrical Resistance Unbalance ( 20℃) ≤2.0%
Insulation Resistance >5000 MΩ·km
Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) ≤160pF/100m
Transmission Properties

Feq

MHZ

Zin IL RL NEXT PS NEXT ELFEXT PS ELFEXT
Ω dB/100m dB dB/100m dB/100m dB/100m dB/100m
1.0 100±15 ≤2.0 ≥20.0 ≥74.3 ≥72.3 ≥68 ≥65.0
4.0 ≤5.3 ≤24.5 ≥61.8 ≥58.8 ≥49.9 ≥46.9
8.0 ≤6.0 ≤25.0 ≥60.3 ≥57.3 ≥48.0 ≥45.0
10.0 ≤7.6 ≤25.0 ≥57.2 ≥54.2 ≥43.9 ≥40.9
16.0 ≤8.5 ≤25.0 ≥55.8 ≥52.8 ≥42.0 ≥39.0
20.0 ≤9.5 ≤24.3 ≥54.3 ≥51.3 ≥40.0 ≥37.0
25.0 ≤10.7 ≤23.6 ≥52.9 ≥49.9 ≥38.1 ≥35.1
31.25 ≤15.4 ≤21.5 ≥48.4 ≥45.4 ≥32.1 ≥29.1
62.5 ≤19.8 ≤20.1 ≥45.3 ≥42.3 ≥28.0 ≥25.0
100 ≤29.0 ≤18.0 ≥40.8 ≥37.8 ≥22.0 ≥19.0

200



≤32.8 ≤17.3 ≥39.3 ≥36.3 ≥20.0 ≥17.0
250 ≤32.8 ≤17.3 ≥39.3 ≥36.3 ≥20.0 ≥17.0
Environment Temperature
Store -10~+50℃ Installation -5~+40 Work -20 ~ +60
Remark

a) The Cable can pass 100m Channel test or 90m Permanent Link test.

b) Insulation Outer Diameter, Sheath Outer Diameter and Packaging Dimensions are for reference only.




Applications:

Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.
  • National University of Singapore Teaching Building

Low Crosstalk Index SF-FTP Cat6 Cable 4 Pair Oxygen-Free Copper Wire 1


  • Singapore Government HDB

Low Crosstalk Index SF-FTP Cat6 Cable 4 Pair Oxygen-Free Copper Wire 2

  • Chengdu Metro Cabling

Low Crosstalk Index SF-FTP Cat6 Cable 4 Pair Oxygen-Free Copper Wire 3

FAQ

Cat.6 SF-FTPLan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.

Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production

Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.

Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
