| Place of Origin: | China, Chengdu |
|---|---|
| Brand Name: | FHDT |
| Certification: | ISO,RoHs, ETL, UL, CPR |
| Model Number: | Railway 1-1/4" fire retardant leaky cable |
| Minimum Order Quantity: | 5 KM |
| Price: | Negotiable |
| Packaging Details: | Neutral drum, 500m/drum. Customizable |
| Delivery Time: | 3-4 weeks for mass production |
| Payment Terms: | Usually T/T, other terms negotiable |
| Application: | Telecommunication / Cabling System, Base Station | Color: | Customized |
|---|---|---|---|
| Jacket Material: | LSZH | Packing: | Neutral Drum |
| Quantity: | 500m/Drum | ||
| High Light: | Railway communication Leaky Feeder Cable,1-1/4" radiant flame retardant leaky cable,Railway communication leaky cable |
||

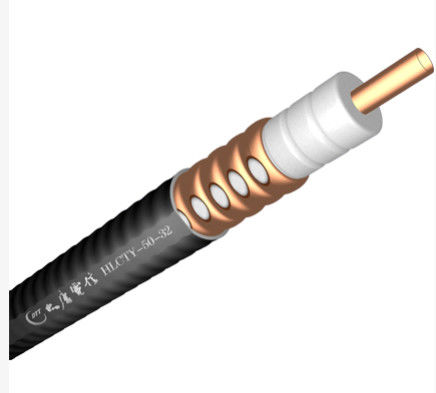

For mobile communication 1-1/4" radiant flame retardant leaky cable(1-1/4" leaky cable) WDZ-SLYWY-50-32-II/WDZ-SLYWY-50-32-III
Quick Detail:
Description:
Radiant flame retardant leakage cable is mainly used in indoor signal transmission to achieve indoor communication signal coverage. The slot on the outer conductor can partially couple the RF energy transmitted inside the cable to the outer space or the RF energy from the outer space to the cable according to different requirements. In the corresponding frequency range, the cable can be used in various communication systems.
Accept customization of OEM or ODM
Specifications:
| Inner conductor | |
| Smooth copper tubeDiameter (mm) | 13.1±0.10 |
| Insulation | |
| 3 layers of InsulationDiameter (mm) | 32.0±0.5 |
| Out conductor | |
| Corrugated Copper-tube With Slot Diameter over copper | |
| Outer conductor (mm) | 3 5.8 O±0.3 0 |
| Diameter over trough(mm) | 31.70±0.30 |
| Pitch (mm) | 8.00±0.30 |
| Jacket | |
| Thickness (mm) | 1.2±0.1 |
| Diameter (mm) | 38.6±0.3 |
| Impedance (Q) | 50±2 |
| Capacitance (pF/m) | 76±2 |
| Velocity (%) | 88 |
| De Resistance (20°C, Q/km) | |
| Inner Conductor | 0. 78 |
| Outer Conductor | 0. 72 |
Applications:
Foamed polyethylene dielectric leaky coaxial cables solve wireless communication problems in confined areas,such as buildings, tunnels, and subways.
