| Place of Origin: | Chengdu, China |
|---|---|
| Brand Name: | FHDT |
| Certification: | IEC A1a.1 |
| Model Number: | Central central loose tube robbon optical fiber cable - GYDXTW |
| Minimum Order Quantity: | 500 Drums |
| Price: | Negotiable |
| Packaging Details: | No more than 4km/drum |
| Delivery Time: | Depends on specific specifications and demand |
| Payment Terms: | Usually T/T, other terms negotiable |
| Supply Ability: | Depends on specific specifications and demand |
| Loose Tube: | PBT | Filler: | Polypropylene Filler |
|---|---|---|---|
| Strength Member: | Phosphating Steel Wire | Water Blocking Material: | Water Blocking Yarn/tape |
| Fiber Count Per Tube: | G.652D-12 | Central Strength Member: | FRP |
| Armor: | PE Coated Corrugated Steel Tape | Operation Temperature: | -40℃～+60℃ |
| Storage Temperature: | -40℃～+60℃ | ||
| Highlight: | G.652D-12 Outdoor Fiber Cable,Polypropylene Filler ribbon optical fiber cable,ribbon optical fiber cable GYDXTW |
||

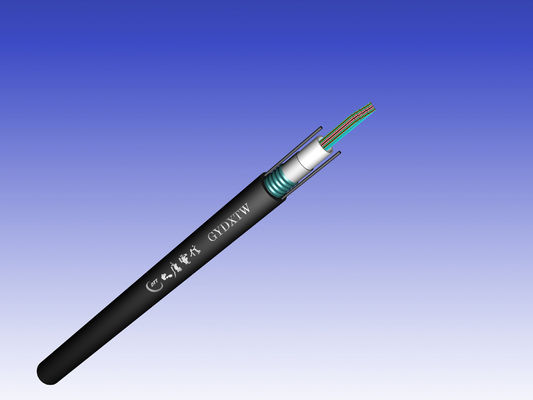

Central central loose tube robbon optical fiber cable - GYDXTW
This product can be used as outdoor distribution lines, feeder or leading lines in access network.
| Type of fiber | B1.1 | B4 | |||
| Wavelength(nm) | 1310 | 1550 | 1550 | ||
| Attenuation coefficient(max)(dB/km) | 0.36 | 0.22 | 0.22 | ||
| PMD | M | 20 | 20 | ||
| Q | 0.01% | 0.01% | |||
| PMDQ(max) | 0.5ps/km1/2 | 0.5ps/km1/2 | |||
| Zero-dispersion Wavelength(nm) | 1300~1324 | —— | |||
| Zero-dispersion Slope (max) ps/(nm2·km) | 0.093 | —— | |||
| Absolute value of Chromatic Dispersion ps/(nm·km) | 1288~1339nm | 3.5 | —— | ||
| 1271~1360nm | 5.3 | —— | |||
| 1550nm | 18.0 | —— | |||
| 1530~1565nm | —— | 0.1~10.0 | |||
| Dmax-Dmin 1530~1565nm | —— | 5.0 | |||
| cut-off wavelength lcc(nm) | ≤1260 | ≤1480 | |||
| Note: If specification at 1600nm is required, Please make it out in the ordering contract. | |||||
|
Fibre Count |
Steel Wire mm |
Loose Tube Size (mm) |
Sheath Thickness mm |
Cable Diameter (mm) |
Cable Weight (kg) |
Strength Long/Short Term (N) |
Crush Resistance (N/100mm) |
| 12~16 | 1.6 | 2.7/3.5 | 3.1 | 11.5 | 144 | 600/1500 | 300/1000 |
| 24 | 1.6 | 3.5/4.5 | 3.1 | 12.5 | 165 | 600/1500 | 300/1000 |
| 36 | 1.6 | 4.2/5.2 | 3.1 | 13.1 | 181 | 600/1500 | 300/1000 |
| 48 | 1.6 | 5.8/7.0 | 3.1 | 15.0 | 224 | 600/1500 | 300/1000 |
| 60~72 | 1.6 | 6.2/7.4 | 3.1 | 15.4 | 235 | 600/1500 | 300/1000 |
| 84~108 | 1.6 | 7.3/8.5 | 3.1 | 16.5 | 266 | 600/1500 | 300/1000 |
| 120 | 1.6 | 7.7/9.1 | 3.1 | 17.1 | 284 | 600/1500 | 300/1000 |
| 132~156 | 1.6 | 8.5/9.9 | 3.1 | 17.9 | 308 | 600/1500 | 300/1000 |
| 168~180 | 1.6 | 9.1/10.5 | 3.1 | 18.5 | 326 | 600/1500 | 300/1000 |
| 192 | 1.6 | 9.8/11.2 | 3.1 | 19.2 | 348 | 600/1500 | 300/1000 |
The standard delivery length of a cable is 1000m, 2000m or 3000m with the tolerance 0～+20m. If special requests are made in the contract, the supplied cable length should conform to it.
