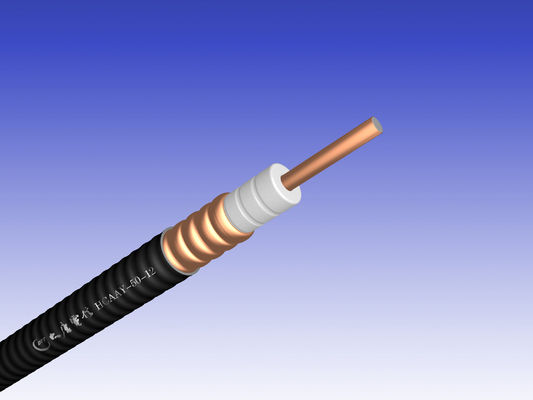

Super Flexible 50Ohm Copper Coaxial cable 1/2 Inch(1/2’’ SF) HCAHY-50-9
Quick Detail:
Description:
Super flexible radio frequency coaxial cable is also called super flexible RF Feeder cable or sf cable. 1/2 sf coaxial cables’ outer conductor adopts spiral corrugated copper tube structure, this kind of cable has better bending performance, small bending radius, good bending resistance, cost-effective, suitable for high-density interconnection of modules, instruments and systems.
Accept customization of OEM or ODM
Specifications:
| Inner conductor | |
| Copper Clad Aluminum | |
| Diameter(mm) | 3.60±0.10 |
| Insulation | |
| 3 layers of Insulation | |
| Diameter(mm) | 10.00±0.40 |
| Outer conductor | |
| Corrugated Copper-tube | |
| Outer conductor (mm) | 12.00±0.30 |
| Jacket | |
| Thickness(mm) | 0.70±0.20 |
| Diameter(mm) | 13.40±0.20 |
| Minimum Bending Radius (mm) | |
| Single Bending | 25 |
| Multiple Bending | 30 |
| Temperature range(℃) | |
| Standard jacket | -40～+70 |
| Fire Retardant Jacket | -25～+70 |
| Impedance (Ω) | 50±1 | |
| Capacitance (pF/m) | 82±2 | |
| Velocity (%) | 84 | |
| Dc Breakdown, volts(V) | ≥2500 | |
| Shielding Effectiveness(dB) | >>120 | |
| Cut-off Frequenc(GHz) | 10.2 | |
| Attenuation(dB/100m)and average power(kW) | ||
| Frequency | Attenuation | Average |
| Power | ||
| 150 MHz | 4.21 | 2.51 |
| 450 MHz | 7.59 | 1.41 |
| 800 MHz | 10.40 | 1.00 |
| 900 MHz | 11.20 | 0.96 |
| 1800 MHz | 16.60 | 0.62 |
| 2000 MHz | 17.60 | 0.60 |
| 2500 MHz | 19.20 | 0.53 |
| 3000 MHz | 22.40 | 0.47 |
| 3500 MHz | 24.58 | 0.44 |
| 4000 MHz | 26.65 | 0.43 |
| 5000 MHz | 30.55 | 0.36 |
| VSWR | ||
| 800MHz～1000MHz | 1.10 | |
| 1700MHz～2200MHz | 1.10 | |
| 2200MHz～2700MHz | 1.15 | |
| 3300MHz～3600MHz | 1.20 | |
| 4400MHz～5000MHz | 1.20 | |
Standard Conditions:
For attenuation: VSWR 1.0, cable temperature 20℃
For average power:VSWR 1.0,ambient temperature 40℃
Inner conductor temperature 100℃.No solar loading.
Maximum VSWR and attenuation value shall be 105% off the nominal value.
Applications:
More suitable for the more stringent bending performance of the environment. It is usually used for mobile, telecommunication, contact cell phone signal coverage and intercom signal coverage. Commonly used as a jumper between the antenna and main feeder, transmitter and main feeder in base station, internal connection line of equipment, indoor coverage, etc.
|
