10dB Cat7A Ethernet Cable 4 Pairs Low Crosstalk Cat7A S FTP

Basic Information
Place of Origin: Chengdu, China
Brand Name: FHDT
Certification: IEEE802.3an, ISO/IEC 11801-2008, ANSI/TIA-568C.2-2009
Model Number: Cat.7A S-FTP
Minimum Order Quantity: 500 drums
Price: Negotiable
Packaging Details: Neutral drum, 305m/drum
Delivery Time: 3-4 weeks
Payment Terms: Usually T/T, other terms negotiable
Supply Ability: 3-4 weeks for mass production
Detail Information
Product Name: S-FTP Cat.7A Ethernet Cable Number Of Conductors: 8
Type: Cat.7A S-FTP Application: Telecommunication / Cabling System
Color: Customized Jacket Material: PVC&LSZH
Conductor Material: Oxygen-free Copper Wire Structure: 4P Twisted Pair
Conductor: 22AWG Quantity: 305m/drum
High Light:

10dB Cat7A Ethernet Cable


4 Pairs Low Crosstalk Cat7A S FTP


10dB Cat7A S FTP

Product Description

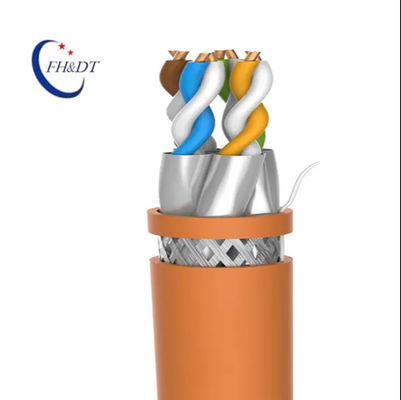

Oem S-FTP 4 Pairs Low Cross Talk Index Cat.7A Ethernet Cable



Cat.7A S -FTP low crosstalk index LAN cable is constructed with a high-quality 22AWG oxygen-free copper conductor for optimal transmission frequency up to 1000MHz. The crosstalk index between each pair has been increased by no less than 10dB, and this cable can pass both 100m channel test and 90m permanent link test, in line with the standards of IEEE802.3an, ISO/IEC 11801-2008, ANSI/TIA-568C.2-2009, as well as CPR UL. This product is supported by a 25-year warranty, and can be customized as an OEM or ODM product.




Test Standard IEC 61156-5
Conductor Material Solid Bare Copper 10dB Cat7A Ethernet Cable 4 Pairs Low Crosstalk Cat7A S FTP 0
Diameter(mm) 0.63±0.01
Insulation Material

Skin-foam-skin PE

Diameter(mm) 1.49±0.05
Core color 1.white-blue/blue 2.white-orange/orange
3.white-green/green 4.white-brown/brown
Polyester tap No Aluminum foil


Rip cord 210D*3 Drain wire No


Coverage ≥30%
Sheath Material PVC
Thickness(mm) 0.6±0.1
Diameter(mm) 8.2±0.5
Color Grey
Surface printing Letter high 3.0 ± 0.5mm
Color Black
Print error & Space ≤± 0.5% , 1m
Package: Drum Package Length:305m
Box Dimensions(mm) 400*200*320
Electrical Properties
Conductor Resistance (20℃) ≤9.5 Ω/ 100m
Electrical Resistance Unbalance ( 20℃) ≤2.0%
Insulation Resistance >5000 MΩ·km
Pair to Ground Capacitance Unbalance(0.8 KHz or 1KHz) ≤160pF/100m
Mutual capacitance of a pair ≤5.6nF/100m
Transmission Properties(Fluke Testing)


Ω ≤dB/100m ≥dB ≥dB/100m ≥dB/100m ≥dB/100m ≥dB/100m
4.00 100±15Ω 3.7 23.0 78.0 75.0 78.0 75.0
8.00 5.2 24.5 78.0 75.0 77.2 74.2
10.00 5.8 25.0 78.0 75.0 75.3 72.3
16.00 7.3 25.0 78.0 75.0 71.2 68.2
20.00 8.2 25.0 78.0 75.0 69.3 66.3
25.00 9.2 24.3 78.0 75.0 67.3 64.3
31.25 10.3 23.6 78.0 75.0 65.4 62.4
62.50 14.6 21.5 78.0 75.0 59.4 56.4
100.00 18.5 20.1 75.4 72.4 55.3 52.3
200.00 100±18Ω 26.5 18.0 70.9 67.9 49.3 46.3
250.00 29.7 17.3 69.4 66.4 47.3 44.3
300.00 100±25Ω 32.7 17.3 68.2 65.2 45.8 42.8
400.00 38.0 17.3 66.4 63.4 43.3 40.3
500.00 42.8 17.3 64.9 61.9 41.3 38.3
600.00 47.1 17.3 63.7 60.7 39.7 36.7
1000 100±35Ω 61.9 15.1 60.4 57.4 35.3 32.3
Environment Temperature
Store -10~+50℃ Installation -5~+40 Work -20 ~ +60

a) Ensure pass 100m Channel test and pass 90m Permanent Link test.
b) Insulation Outer Diameter, Sheath Outer Diameter and Packaging Data are for reference only.


Widely used for cabling between telecommunication outlet of working areas and distribution frame of cross connection closet in building GENERIC CABLING SYSTEM, and the cabling between user telecommunication outlet and distribution frame in residential cabling system.

  • National University of Singapore Teaching Building

10dB Cat7A Ethernet Cable 4 Pairs Low Crosstalk Cat7A S FTP 1

  • Singapore Government HDB

10dB Cat7A Ethernet Cable 4 Pairs Low Crosstalk Cat7A S FTP 2

  • Chengdu Metro Cabling

10dB Cat7A Ethernet Cable 4 Pairs Low Crosstalk Cat7A S FTP 3

DATANG CABLE is specialized in R&D, manufacturing, Sales, Distribution of telecommunication cable and accessories in China and worldwide markets. With constant efforts, DATANG CABLE has been a Top10 Cabling System Brand in China since 2009.


DATANG CABLE focuses on cable research and innovation in China since 1965.


With more than 50 years R&D experience, we have contributed in drafting many national standards and other industry standards. DATANG CABLE has a professional technical team and we can offer a strong technical support when necessary.


DATANG CABLE has 3 main workshops: lan cable & accessories, fiber cable & accessories and coaxial cable & accessories workshops. With imported production lines, and well designed modern workshop and experienced team, DATANG CABLE is equipped with big capacity to meet customers demand in home and abroad: Lan Cable: 1 million boxes/year; Coaxial Cable: 80000km/year; Optical Fiber Cable: 3.5 million core km/year.


QUALTIY is always first priority in DATANG CABLE. Company is ISO 9001,ISO 14000 certified, and products are manufactured and tested according to international standards. Products are RoHS, REACH, UL, ETL, CPR certified. OEM&ODM service is available.


Meeting CUSTOMERS demand is always the drive for DATANG CABLE. DATANG CABLE has gained great market share in both domestic and oversea markets because of customer satisfaction. More and more customers are choosing to partner with DATANG CABLE because its strong support and services and constant improvement to meet customers’ requirements. Together with customers, we have overcome many difficulties and improved our ability to serve customers better, and grow together. Annual sales revenue is over 90 million USD and growing each year.


Cat.7A S-FTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.
Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production
Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.
Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
