| Place of Origin: | Chengdu, China |
|---|---|
| Brand Name: | FHDT |
| Certification: | IEC A1a.1 |
| Model Number: | Stranded Loose Tube Optical Cable |
| Minimum Order Quantity: | 500 Drums |
| Price: | Negotiable |
| Packaging Details: | No more than 4km/drum |
| Delivery Time: | Depends on specific specifications and demand |
| Payment Terms: | Usually T/T, other terms negotiable |
| Supply Ability: | Depends on specific specifications and demand |
| Loose Tube: | PBT | Filler: | Polypropylene |
|---|---|---|---|
| Strength Member: | Phosphating Steel Wire | Water Blocking: | Compound Filling Gel |
| Outer Sheath: | MDPE | Operation Temperature: | -40℃～+60℃ |
| Storage Temperature: | -40℃～+60℃ | ||
| High Light: | IEC A1a.1 PBT Outdoor Fiber Cable,loose tube fiber optic cable GYFTY,PBT loose tube fiber optic cable |
||

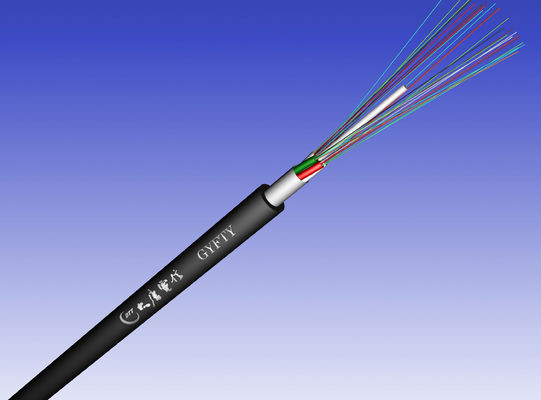

Stranded Loose Tube Optical Cable—GYFTY

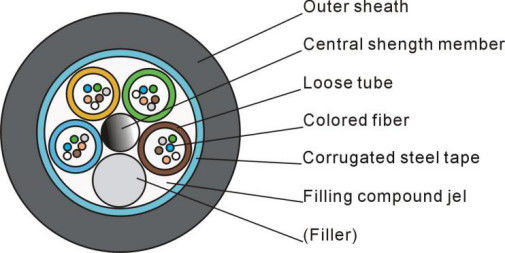

Optical fibers are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around the central strength member to form a cable core. The core is covered by compound filling gel. Finally, an outer PE sheath is extruded.
This product can be used as outdoor transmission lines in core network (for example, long haul and relay lines between local telecommunication centers). It can also be used as outdoor distribution lines or feeder in access network.
Recommended: Duct, Aerial, Groove
Single mode optical fiber or multimode optical fiber shall be selected according to the needs of users
The standard structure of cable is shown in the following table, other structure and fiber count are also available according to customer requirements.
| Item | Contents | Value Remarks | |||||
| 6 | 12 | 24 | 48 | 96 | 144 | ||
| Loose tube | Material | PBT | |||||
| Number | 1 | 2 | 4 | 4 | 8 | 12 | |
| Outer diameter (mm) | 2.1 | 2.1 | 2.1 | 2.5 | 2.5 | 2.5 | |
| Fiber count per tube | Number | 6 | 6 | 6 | 12 | 12 | 12 |
| Filler | Material | Polypropylene | |||||
| Number | 5 | 4 | 2 | 2 | - | - | |
| Central strength member | Material | Fiber Reinforced Plastic(FRP) | |||||
| Diameter (mm) | 2.3 | 2.3 | 2.3 | 2.6 | 2.8 | 3.3 | |
| PE layer diameter (mm) | - | - | - | - | 4.2 | 7.4 | |
| Water Blocking | Material | Compound filling gel | |||||
| Outer sheath | Material | HDPE | |||||
| Color | Black | ||||||
| Thickness (mm) | Nominal: 1.8 | ||||||
| Cable diameter(mm) Approx. | 10.2 | 10.2 | 10.2 | 11.3 | 12.9 | 16.1 | |
| Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Blue | OR | GR | BR | Slate | White | Red | Black | YE | Violet | Pink | Aqua |
Note: fiber color in each tube according to be the above table.
| Item | Value | |
| Tensile performance(N) | 1500 | |
| Crush(N/100mm) | 1000 | |
| Minimum Bending radius | Dynamic | 25 times of cable diameter |
| Static | 12.5 times of cable diameter | |
| Operation temperature: | -30℃～+70℃ | |
| Installation temperature | -40℃～+70℃ | |
| Storage temperature | -40℃～+70℃ | |
The standard delivery length of a cable is 1000m.2000m.3000m or 4000m with the tolerance 0～+20m. If special requests are made in the contract, the supplied cable length should conform to it.
