| Place of Origin: | China, Chengdu |
|---|---|
| Brand Name: | FHDT |
| Certification: | ISO,RoHs, ETL, UL, CPR |
| Model Number: | 50 ohm Corrugated Copper-tube 1-5/8 Coaxial Cables for Wireless Communication |
| Minimum Order Quantity: | 3 KM |
| Price: | Negotiable |
| Packaging Details: | Neutral drum, 500m/drum. Customizable |
| Delivery Time: | 3-4 weeks for mass production |
| Payment Terms: | Usually T/T, other terms negotiable |
| Highlight: | 1-5/8'' 50Ohm Coaxial Cable,VSWR Coaxial Cable,Radio Frequency 1-5/8'' 50Ohm Coaxial Cable |
||
|---|---|---|---|

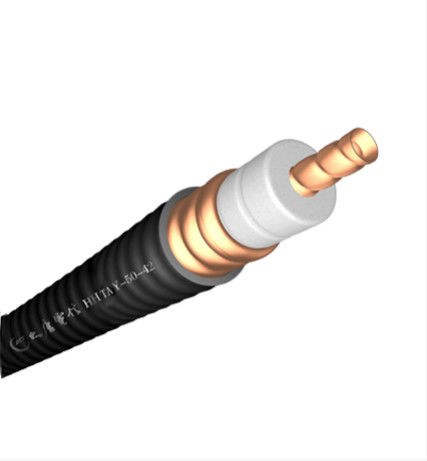

Wireless Communication 50Ohm Corrugated Copper-tube Feeder cable 1-5/8 Inch(1-5/8’’ coaxial cable) HHTAY-50-42
Quick Detail:
Description:
Flexible radio frequency coaxial cable is also called Flexible RF Feeder cable or Feeder cable. 1-5/8"feeders are typically carrier-specific cables with very low losses and support long-distance connections. In large projects, a 1-5/8" Coaxial cable is an essential cable, a simple connection, and a low failure rate after installation. Accept customization of OEM or ODM
Specifications:
| Inner conductor | |
| Smooth Copper-tube | |
| Diameter(mm) | 17.3±0.10 |
| Insulation | |
| 3 layers of Insulation | |
| Diameter(mm) | 42.4±0.5 |
| Outer conductor | |
| Corrugated Copper-tube | |
| Diameter over copper | |
| Outer conductor (mm) | 46.50±0.4 |
| Jacket | |
| Thickness(mm) | 1.7±0.2 |
| Diameter(mm) | 49.5±0.5 |
| Minimum Bending Radius (mm) | |
| Single Bending | 300 |
| Multiple Bending | 510 |
| Temperature range(℃) | |
| Standard jacket | -40～+70 |
| Fire Retardant Jacket | -25～+70 |
| Impedance (Ω) | 50±1 | |
| Capacitance (pF/m) | 76 | |
| Velocity (%) | 88 | |
| Dc Breakdown, volts(V) | ≥11000 | |
| Shielding Effectiveness(dB) | >>120 | |
| Cut-off Frequenc(GHz) | 2.7 | |
| Attenuation(dB/100m)and average power(kW) | ||
| Frequency | Attenuation | Average |
| Power | ||
| 150 MHz | 0.85 | 13.5 |
| 450 MHz | 1.56 | 7.2 |
| 800 MHz | 2.17 | 5.2 |
| 900 MHz | 2.34 | 4.93 |
| 1800 MHz | 3.54 | 3.12 |
| 2000 MHz | 3.78 | 3.01 |
| 2500 MHz | 4.36 | 2.64 |
| VSWR | ||
| 820MHz～960MHz | 1.10 | |
| 1700MHz～2200MHz | 1.10 | |
| 2200MHz～2500MHz | 1.15 | |
Standard Conditions:
For attenuation: VSWR 1.0, cable temperature 20℃
For average power: VSWR 1.0, ambient temperature 40℃
Inner conductor temperature 100℃.No solar loading.
Maximum VSWR and attenuation value shall be 105% off the nominal value.
Applications:
It is usually used for mobile, telecommunication, contact cell phone signal coverage, and intercom signal coverage.
